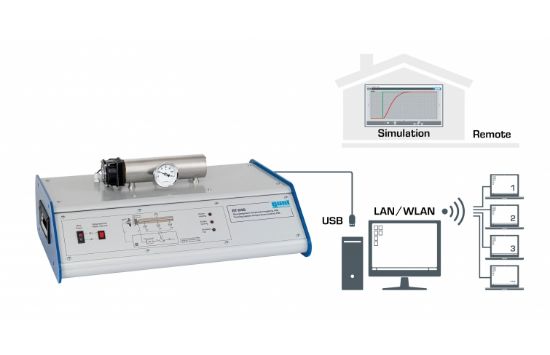

The GUNT Training System Temperature Control, HSI provides basic experiments on temperature regulation using a metal rod as the controlled system. Temperature is measured at three points with thermistors (PTC), with one value fed into the software controller while the others are recorded to replicate different system responses. The controller adjusts a Peltier element, which can either heat or cool the rod via its hot and cold sides. A fan controlled by the software dissipates heat to study disturbance effects. Temperature is continuously visible on a dial-gauge thermometer attached to the rod. Integrated with GUNT's Hardware/Software Integration (HSI) software via USB, the system supports real-time control response visualization, programmable reference values, and simulations of control systems up to 2nd order. Remote learning and multi-workstation observation via a local network are also supported, making it ideal for technical education and research.
Product Features
- Basic temperature control experiments using a metal rod as controlled system
- Temperature measured at three points with thermistors (PTC)
- One measured value used for software controller input; others recorded for system response analysis
- Controller adjusts Peltier element to provide heating or cooling
- Software-controlled fan dissipates heat to simulate disturbance variables
- Control response displayed as time-dependent graphs
- Dial-gauge thermometer enables direct temperature readings
- Integration with GUNT Hardware/Software Integration (HSI) software
- USB interface connects unit to external PC for control and visualization
- Programmable reference values and timed control progressions
- Software simulations cover control systems up to 2nd order dynamics
- Supports remote learning through pre-experiment preparations and simulations
- Multi-workstation access via local network enables collaborative learning
- Part of an extensive control technology training series covering multiple variables
Benefits
- Practical experience in temperature control with real hardware
- Supports comprehensive learning in control engineering
- Powerful software tools for visualization and data analysis
- Facilitates remote and multi-user educational setups
- Enables study of disturbance effects on temperature control
Why Choose the GUNT Training System Temperature Control, HSI?
The GUNT Temperature Control Training System, HSI combines precise physical components with advanced simulation software to provide a versatile and effective tool for learning temperature regulation in control engineering. Suitable for classroom, lab, or remote teaching environments, it offers clarity, flexibility, and real-time insights into process control.
