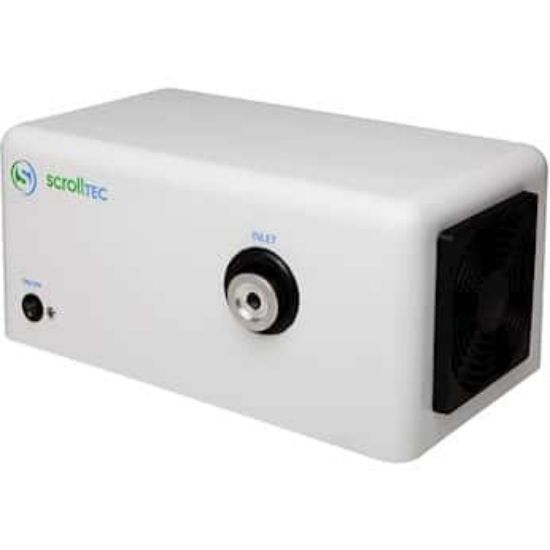

The Scroll Labs SVF-E2-100C Scroll Pump, 100 L/min, 0.007 torr (79500-12) is an oil-free, tip-seal-free scroll vacuum pump with a free-air capacity of 100 L/min and maximum vacuum of 0.007 torr. Its floating scroll technology is designed to handle moisture and solvents without a ballast valve while providing compact vacuum performance for laboratory and analytical applications.
Key Features
- 100 L/min free-air capacity, equivalent to 3.5 CFM for high-throughput laboratory vacuum applications
- Maximum vacuum of 0.007 torr, providing deep vacuum performance for the SVF-E2-100C configuration
- Tip-seal-free floating scroll technology, eliminating the conventional tip seals used in standard scroll pump designs
- Oil-free operation, providing clean vacuum generation without oil in the pumping mechanism
- Handles moisture and solvents without a ballast valve, supporting demanding laboratory vapour-handling workflows
- Maximum rotation speed of 4000 RPM, supporting the specified pumping performance
- KF-25 or G 3/8 in inlet and outlet connections, providing flexible connection options for compatible vacuum systems
- Low 55 dB operating noise, supporting installation in laboratory and analytical environments
- Wide -40 to 50°C operating temperature range, providing the specified environmental operating limits
- Universal 100 to 240 VAC input, supplied with a US plug and 48 VDC AC adapter
- Compact 39.4 x 23.6 x 18.9 cm footprint, supporting integration into portable and space-limited equipment setups
- Pump and protective case included, along with the required 48 VDC AC adapter
Benefits
- Reduces routine tip-seal replacement requirements through the patented floating scroll design.
- Supports clean vacuum processes through oil-free operation without conventional pump oil contamination.
- Handles moisture and solvent vapours without requiring a ballast valve, simplifying suitable laboratory workflows.
- Provides a combination of high pumping speed and deep vacuum performance for demanding analytical and process applications.
- Fits more easily into portable or space-constrained systems through its compact physical design.
- Supports applications including rotary evaporation, distillation, botanical extraction, mass spectrometry, clean rooms, freeze drying and gas analysis.
Why Choose the Scroll Labs SVF-E2-100C Scroll Pump, 100 L/min, 0.007 torr (79500-12)?
The Scroll Labs SVF-E2-100C Scroll Pump, 100 L/min, 0.007 torr (79500-12) combines oil-free operation, tip-seal-free floating scroll technology and 100 L/min pumping capacity in a compact vacuum platform. Its ability to handle moisture and solvents without a ballast valve makes it well suited to demanding laboratory vacuum applications where clean operation and reduced tip-seal maintenance are important. Buy from John Morris Group for Scroll Labs vacuum equipment in Australia.
