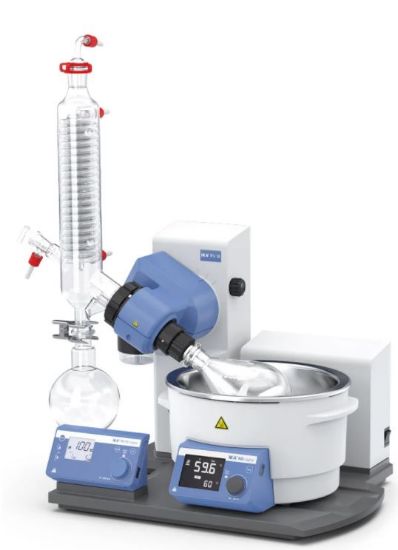

IKA-Werke Rotation Evaporator RV 10 Digital V 4 Liters is a robust and reliable laboratory companion designed for efficient solvent evaporation. Its optimized bath volume ensures fast heat-up times, while the vertical condenser unit with 1500 cm² surface delivers highly efficient condensation. The RV 10 digital provides reliable and reproducible process results, usually reserved for higher-end systems.
Product Features
- Universal water/oil heating bath
- Motorized lift with safety-stop function
- RS 232 and IR interface for remote control
- Optimized heating bath volume for rapid heat-up
- Highly efficient 1500 cm² vertical condenser unit
- Ergonomically placed handles on heating bath
- Left-right interval rotation
- Timer function for automated operation
- Dry-run protection
- Individually adjustable safety temperature circuits
- Lower-end stop to prevent over-lowering
- Push-off mechanism for loosening tight glassware
- Easy and safe operation due to ergonomic user interface
Scope of Supply
- RV 10 Digital V: Rotary evaporator RV 10 digital, heating bath HB digital, vertical glassware RV 10.1, vapor tube RV 10.70
- RV 10 Digital V-C: Rotary evaporator RV 10 digital, heating bath HB digital, vertical coated glassware RV 10.10, vapor tube RV 10.70
- RV 10 Digital V FLEX: Rotary evaporator RV 10 digital, heating bath HB digital, Woulf bottle, spherical joint clip RV 05.10, clamp NS 29 RV 10.88, vapor tube RV 10.70
Specifications
- Drive: Motor rating input 50 W, speed range 20–280 rpm, digital speed display, head angle adjustable 0–45°, stroke displacement 140 mm (motorized), setting of lower end stop 60 mm (contact-free)
- Heating Bath: Temperature range ambient to 180 °C, heating power 1,300 W
- General Data: Dimensions W x D x H 500 x 430 x 410 mm, protection class IP 20, power supply 220–240 V / 50/60 Hz
Benefits
- Reliable and reproducible evaporation results for laboratory workflows
- Efficient vertical condenser maximizes condensation surface
- Motorized lift with safety features prevents overheating and accidents
- Ergonomic design ensures safe and convenient handling
Why Choose IKA-Werke Rotation Evaporator RV 10 Digital V?
This rotary evaporator combines efficiency, safety, and precise control, making it ideal for laboratories requiring high-quality solvent evaporation with advanced automation and ergonomic operation.
