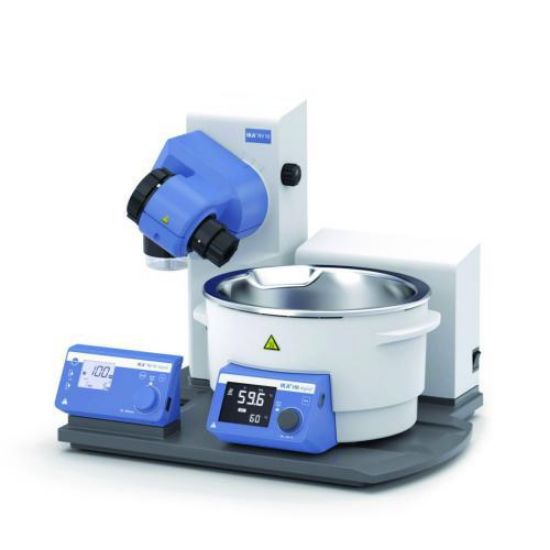

IKA-Werke Rotation Evaporator RV 10 Digital FLEX is a robust and reliable laboratory companion designed for efficient and reproducible evaporation processes. Its optimized heating bath volume ensures fast heat-up times, while the vertical condenser unit with specially designed glass tubes provides a highly efficient 1500 cm² surface area for rapid condensation.
Product Features
- Universal water/oil heating bath
- Motorized lift with safety-stop function
- RS 232 and IR Interface for remote control
- Optimized heating bath volume for fast heat-up
- Highly efficient 1500 cm² condenser unit
- Ergonomically placed handles on heating bath
- Left-right interval operation
- Timer function
- Dry-run protection
- Safety temperature circuits
- Lower-end stop
- Push-off mechanism to loosen tightly fitted glassware
- Easy and safe operation due to ergonomic user interface
Scope of Supply
- RV 10 digital V: Rotary evaporator RV 10 digital, heating bath HB digital, vertical glassware RV 10.1, vapor tube RV 10.70
- RV 10 digital V-C: Rotary evaporator RV 10 digital, heating bath HB digital, vertical glassware coated RV 10.10, vapor tube RV 10.70
- RV 10 digital V FLEX: Rotary evaporator RV 10 digital, heating bath HB digital, Woulf bottle, spherical joint clip RV 05.10, clamp NS 29 RV 10.88, vapor tube RV 10.70
Specifications
- Drive: Motor rating input: 50W
- Speed range: 20 to 280 rpm
- Speed display: digital
- Head angle adjustable: 0 to 45°
- Stroke displacement: 140 mm, motorized
- Setting of lower end stop: 60 mm, contact-free
- Heating Bath: Temperature range: Ambient up to 180°C
- Heating power: 1,300 W
- General Data: Dimensions (W x D x H): 500 x 430 x 410 mm
- Protection class: IP 20
- Power supply: 220-240V / 50/60Hz
Benefits
- Reliable and reproducible evaporation results for laboratory applications
- Integrated safety features prevent overheating and damage
- Ergonomic design ensures easy and safe handling
- Flexible operation with various configurations and coated glassware options
Why Choose IKA-Werke RV 10 Digital FLEX?
The RV 10 Digital FLEX combines efficiency, safety, and user-friendliness, offering a professional solution for rotary evaporation in research and industrial laboratories.
