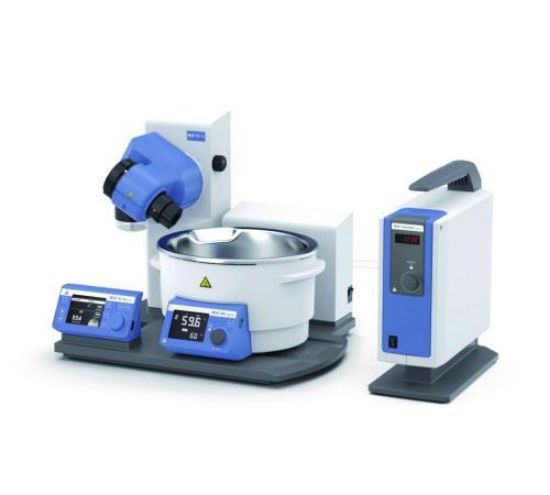

IKA-Werke Rotation Evaporator RV 10 Auto Pro FLEX 4 Liters is a high-performance rotary evaporator designed for fully automated and reliable laboratory evaporation processes. The RV 10 Auto series features a bright, high-contrast TFT color-graphic control panel, integrated vacuum controller, and cooling water monitoring for optimal process control and safety. The RV 10 Auto Pro is equipped with the fully automatic VACSTAR digital vacuum pump for precise automatic detection of solvent boiling points.
Product Features
- Integrated solvent library with 40 preset solvents and expansion option
- Optimized heating bath volume for rapid achievement of working temperature
- Programming option for up to ten individual procedures
- Smooth start for safe operation
- Right or left rotation
- Timer function
- Optional coated flask and condenser
- Automatic vacuum management (RV 10 Auto Pro)
- Motorized lift with safety-stop function
- Individually adjustable temperature safety circuits
- Protection against boiling dry
- Adjustable end-point recognition to prevent glass breakage
- Locking function for enhanced safety
- USB port and RS-232 interface for remote control via labworldsoft
- Highly efficient condenser with 1500 cm² cooling surface
Scope of Supply
- RV 10 Auto: Rotary evaporator RV 10 Auto with Heating bath HB 10, Magnetic valve RV 10.4002, Woulff bottle
- RV 10 Auto V: with vertical glassware RV 10.1
- RV 10 Auto V-C: with vertical coated glassware RV 10.10
- RV 10 Auto FLEX: without glassware
- RV 10 Auto Pro: Rotary evaporator RV 10 Auto Pro with Heating bath HB 10, VACSTAR digital vacuum pump, Woulff bottle
- RV 10 Auto Pro V: with vertical glassware RV 10.1
- RV 10 Auto Pro V-C: with vertical coated glassware RV 10.10
- RV 10 Auto Pro FLEX: without glassware
Specifications
- Drive: Speed range: 5 ... 300 rpm, speed display: digital, stroke displacement: 140 mm
- Heating Bath: Bath volume: 4 l, temperature range: ambient ... +180 °C
- Power input: standby 100 W / 3.3 W
- General Data: Dimensions (W x D x H): 500 x 410 x 430 mm
- Weight: 18.6 kg
- Protection class: IP 20
- Power supply: 100 ... 240 V / 50/60 Hz
Benefits
- Fully automated, precise, and safe rotary evaporation
- Integrated safety features prevent overheating, glass breakage, and operational hazards
- User-friendly TFT control panel with programming and remote interface options
- Flexible operation with coated glassware and VACSTAR digital pump for advanced performance
Why Choose IKA-Werke RV 10 Auto Pro FLEX 4 Liters?
This rotary evaporator offers professional laboratory performance with safety, automation, and reproducibility, ideal for demanding research and industrial applications.
