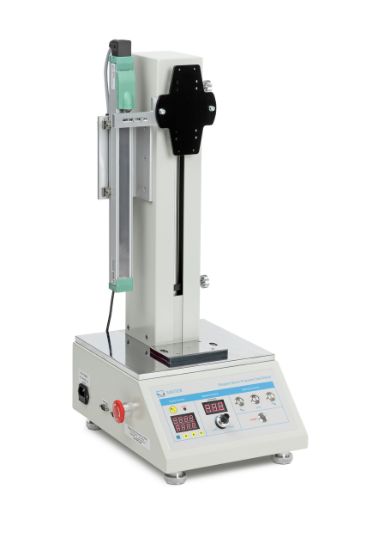

- Five in one – motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting
- With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 300 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed
- Motorised test stand for tension/compression force measurements
- Stepper motor for greatest ease of use
- for constant speed from the smallest to the maximum load
- allows testing at minimum speed and full load
- for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds
- precise adjustment of the displacement speed using the information shown on the display - Automatic or manual operation mode
- Premium operating panel:
- Digital speed display
- Digital repeat function display
- Control of the test stand using PC software SAUTER AFH - Table-top design for comfortable operation
- Robust construction
- Fixation of SAUTER force measuring devices up to 500 N possible, only in combination with TVO-A01 (see accessories)
