Range Full Scale: 10 Torr
Fitting: NW16-KF
Sensor: standard
Electrical Connector: 15 POS D-subminiature-M with screw locks
Calibration Orientation: greater than 1 Torr
15 pin D terminal block adaptor: included

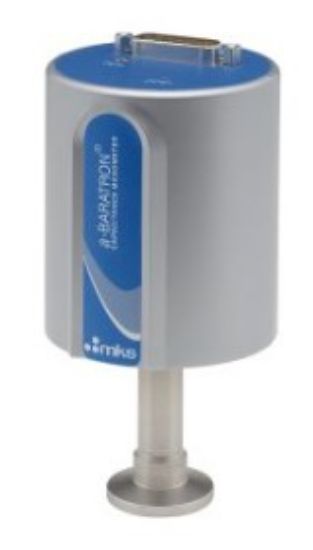

The AA01A Baratron® capacitance manometer is a high-performance, unheated, absolute pressure transducer developed specifically for use in vacuum and pressure measurement applications where accuracy and repeatability are crucial to process success. They use state-of-the-art digital architecture throughout to produce the highest possible long-term performance and reliability.
- Full scale absolute pressure measurement from 1 to 1000 Torr
- 0-10 VDC output proportional to pressure with 0.25% of reading accuracy
- Fully welded sensor built entirely from Inconel® and Incoloy® nickel alloys
- High overpressure limit ensures reliability from occasional system mishaps
- Push button zeroing
