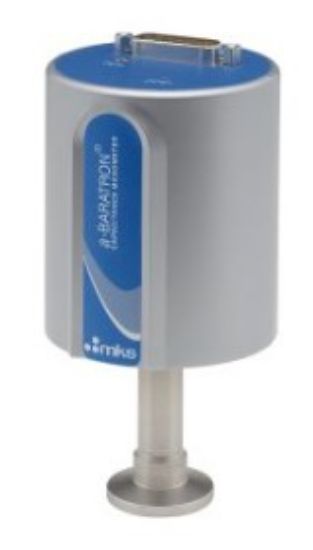

The MKS AA01 Baratron Capacitance Manometer is a high-performance, unheated absolute pressure transducer designed for precise vacuum and pressure measurements where accuracy and repeatability are essential. Built with state-of-the-art digital architecture, this manometer offers superior long-term reliability and performance for demanding applications.
Product Features
- Full scale absolute pressure measurement range from 1 to 1000 Torr, with a specific 10 Torr full scale model
- 0-10 VDC output proportional to pressure with 0.25% of reading accuracy
- Fully welded sensor constructed entirely from Inconel and Incoloy nickel alloys for exceptional durability
- High overpressure limit for enhanced reliability during occasional system mishaps
- Push button zeroing for easy and precise calibration
- 4 VCR Female fitting ensuring secure and leak-tight connections
- 1/4" diameter tube sensor for efficient pressure sensing
- 15 POS D-subminiature-M electrical connector with screw locks for secure interface
- Calibration orientation applicable for pressures greater than 1 Torr
- 15 pin D terminal block adaptor: none
Benefits
- High accuracy and repeatability ensure consistent, reliable measurement results
- Robust sensor materials provide excellent corrosion and temperature resistance
- Unheated design reduces complexity and maintenance requirements
- Push button zeroing simplifies operation and calibration in the field
- Wide pressure range accommodates various vacuum and pressure measurement needs
Why Choose the MKS AA01 Baratron Capacitance Manometer XDCR, 10 Torr, 4 VCR Female, 15-Pin D-Sub with Screw Locks, 24V?
The MKS AA01 Baratron Capacitance Manometer combines precision, durability, and ease of use in a compact package. Its advanced digital architecture and rugged sensor design provide stable and accurate absolute pressure readings essential for critical vacuum and pressure control applications. Whether in research or industrial environments, the AA01 offers unmatched reliability and performance.
