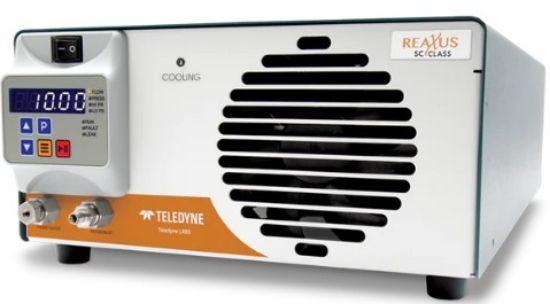

ReaXus SC Class 24 mL Positive Displacement Pump for Liquid CO2:
-
Flow Rate: 00.01 to 24.00 mL/Minute
-
Maximum Pressure: 10,000 psi
-
Material: Aluminum Heads and Stainless Steel Fluid Path
-
Cooling System: Peltier thermoelectric
-
Available in Constant Flow or Constant Pressure
The SC Class reciprocating pump rovides reliable, accurate and reproducible pumping of liquid CO2 for SFC, SFE, and other applications. The SC Class is available with a maximum flow rate of 24 mL/min, and can reach pressures to 10,000 psi. Available in either Constant Pressure or Constant Flow configurations. The pump’s constant pressure mode features a selectable pressure set point. The flow rate auto-adjusts to maintain pressure—ideal for extraction applications. Constant flow configuration provides precise CO2 flow rates for supercritical fluid chromatography.
Easy Maintenance
The SC Class employs fully-integrated Peltier thermoelectric cooling modules to maintain consistent CO2 temperatures during the pumping cycle. Its unique construction simplifies pump installation and eliminates the need for external water baths or chillers with associated tubing and maintenance.
Standard Features
-
All-aluminum pump heads (for enhanced heat transfer)
-
In-line electronic pressure transducer
-
Simple front panel keypad controls with LED display
-
Motor stall detector
-
Inlet & Outlet filters
