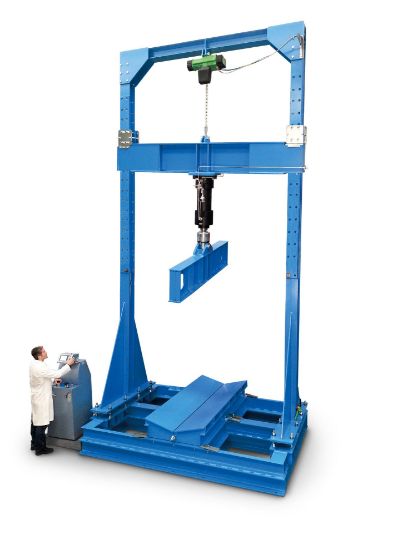

The MATEST Pipe Testing Frame 1000 kN is a robust steel frame designed for testing large pipes with external diameters ranging from 450 mm to 2600 mm and lengths up to 2500 mm. Constructed from structural steel and bolted together with high-strength bolts, the frame is easily assembled and disassembled for transport or site relocation. It must be securely locked to a concrete base prepared by the customer. Featuring two motor-operated, two-speed winches to raise and lower the upper crossbeams, the frame allows precise positioning secured by locking pins. The lower bearers, 2500 mm long, support pipes with flat or “V” shaped profiles as required by EN 1916 specifications. An upper loading beam floats on a seat for accurate load application during testing.
Product Features
- Steel testing frame with 1000 kN capacity designed for pipe testing
- Suitable for pipes with external diameters from 450 mm up to 2600 mm
- Supports pipe lengths up to 2500 mm
- Two lower bearers (2500 mm long) supplied flat or “V” shaped per EN 1916 specifications
- Two upper crossbeams (2500 mm long) raised and lowered by motor-operated two-speed winch
- Upper crossbeam locked in position by pins through the frame columns
- Frame constructed of bolted structural steel for easy assembly/disassembly and site mobility
- Requires locking to a concrete base prepared by the customer for stable testing
- Upper loading beam floats on a seat for precise load application
Benefits
- Accommodates testing of large diameter pipes with versatile support options
- Modular design allows easy transport and installation on-site
- Motorized winches provide precise and safe positioning of upper crossbeams
- Robust steel construction ensures stability and durability under heavy loads
- Compliance with EN 1916 ensures standardized testing accuracy
- Floating upper loading beam delivers consistent and accurate load application
Why Choose the MATEST Pipe Testing Frame 1000 kN?
The MATEST Pipe Testing Frame 1000 kN combines strength, precision, and versatility to meet the rigorous demands of pipe testing. Its modular steel design and motorized operation make it ideal for laboratories and testing sites requiring reliable performance for large diameter pipes up to 2600 mm. Compliance with EN 1916 standards ensures trustworthy test results for quality assurance.
