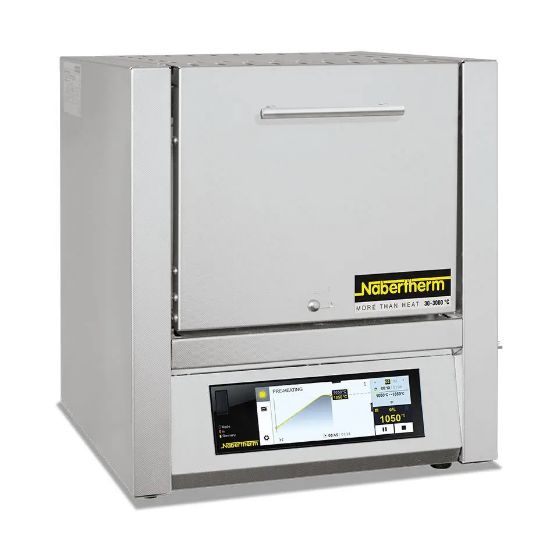

We recommend the muffle furnace L 9/11/SKM for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a good temperature uniformity with excellent protection of the herating elements from aggressive atmospheres.
Another aspect is the smooth, nearly particle free muffle furnace door made of fibre insulation, an important quality feature.
Technical:
- Temperature Range: Up to 1100c
- Capacity: 9 litres
- Benchtop/Fume Hood
- External Dimensions: width 490mm, depth 505mm, height 580mm.
Specifications:
Muffle heated from four sides
Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Optional flap door (L) which can be used as a work platform or lift door (LT) with hot surface facing away from the operator.
Adjustable working air outlet in rear wall of furnace
Controller B510 (5 Programs with 4 segments each).
Solid state relays provide for lownoise operation
NTLog Basic for Nabertherm controller allows for recording of process data with USB flash drive.
