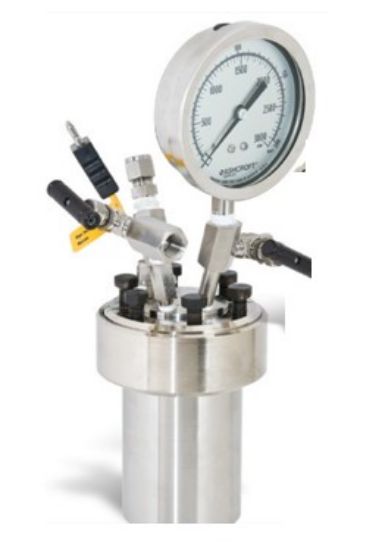

The Parr 4760 450 mL PTFE Pressure Vessel, ASME (4760-450mL-T-SS-VGR-VD-600-ASME) is a Series 4760 general purpose non-stirred pressure vessel configured for high-pressure laboratory work. This configuration combines a 450 mL T316 stainless steel vessel, PTFE flat gasket, VGR head configuration, VD single valve on head with dip tube, 600 psi pressure gage and ASME documentation.
Key Features
- 450 mL Series 4760 vessel format, providing a compact general purpose non-stirred pressure vessel for laboratory-scale pressure work
- 3000 psi MAWP rating, rated at 350 °C for the standard vessel configuration
- PTFE flat gasket configuration, specified by the T order code for operation up to 350 °C
- T316 stainless steel construction, specified by the SS material code in the Parr ordering guide
- VGR head configuration, including valve on gage adapter, pressure gage, rupture disc assembly and thermocouple
- VD dip tube valve option, adding a single valve on the head with dip tube where VGR is specified
- 600 psi pressure gage option, specified by the 600 pressure gage code for VGR and gage block configurations
- ASME documentation option, specified by the ASME certification code in the Parr ordering guide
- Moveable head standard configuration, as no fixed-head suffix is included in the configured order code
- Flexible head opening capacity, with up to seven head openings depending on opening size and required fittings
- Series 4760 conversion flexibility, allowing vessels in the series to be converted between sizes by substituting the cylinder, corresponding internal fittings and heater where required
Note: Heater, controller and stand are not included in this configuration and must be ordered separately if required for the application.
Benefits
- Provides a specified 450 mL Parr vessel configuration for laboratories requiring non-stirred high-pressure containment.
- Supports elevated-temperature work through a PTFE flat gasket configuration rated to 350 °C.
- Combines pressure monitoring, pressure relief hardware and temperature measurement in the VGR head configuration.
- Helps match the pressure gage range to lower-pressure applications through the 0 to 600 psi gage option.
- Supports documentation requirements where ASME pressure vessel documentation is specified.
- Allows heater, controller and stand selection to be matched separately to the required workflow.
Why Choose the Parr 4760 450 mL PTFE Pressure Vessel, ASME (4760-450mL-T-SS-VGR-VD-600-ASME)?
The Parr 4760 450 mL PTFE Pressure Vessel, ASME (4760-450mL-T-SS-VGR-VD-600-ASME) is a clearly defined Series 4760 configuration for laboratories that need a 450 mL T316 stainless steel non-stirred vessel with PTFE gasket, VGR/VD fittings, 600 psi gage selection and ASME documentation. John Morris Group can assist with Parr pressure vessels, compatible heaters, controllers, stands and related reactor accessories for Australian laboratories.
