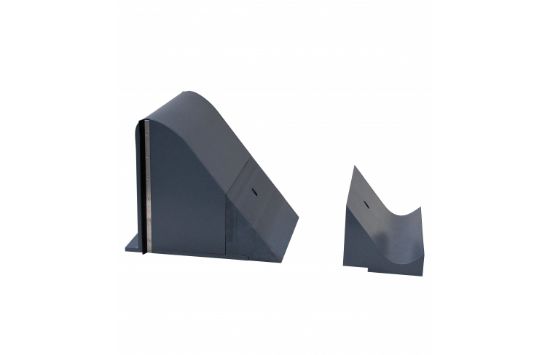

The GUNT Ogee-Crested Weir HM 162.32 is a fixed control structure for open channel flow experiments in the HM 162 flume. It enables the study of flow transition to supercritical discharge and the effects of weir outlet design on energy dissipation.
Product Features
- Ogee-crested weir with fixed crest for controlled flow experiments
- Two weir outlet options: chute only and chute with ski jump
- Demonstrates transition to supercritical discharge over the weir body
- Highlights potential energy effects and the need for energy dissipation
- Compatible with optional HM 162.35 accessory for additional energy dissipation studies
Benefits
- Enables study of supercritical flow behavior in open channels
- Provides clear observation of different weir outlet effects on energy dissipation
- Supports comparison of chute-only and ski-jump outlets
- Durable construction suitable for repeated laboratory experiments
Why Choose GUNT Ogee-Crested Weir with Two Weir Outlets?
The GUNT Ogee-Crested Weir HM 162.32 provides a versatile and reliable solution for experiments on supercritical flow and energy dissipation, allowing observation of different weir outlet designs.
