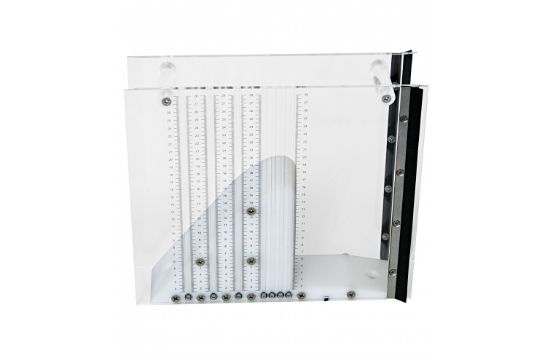

The GUNT Ogee-Crested Weir with Pressure Measurement (HM 160.34) is a fixed control structure designed for studying flow over dams and open channels. The weir features a massive triangular damming body with a downstream side shaped to optimize flow and achieve maximum discharge.
Product Features
- Fixed ogee-crested weir forming part of a control structure
- Triangular-shaped damming body with downstream design for optimal flow
- Integrated pressure measurement along the downstream side of the weir
- Pressure heads indicated directly on integrated manometer tubes
- Durable construction suitable for educational and research experiments
- Allows precise study of flow and pressure distribution in open channels
- Easy integration with HM 160 experimental flume
Benefits
- Facilitates hands-on study of flow and pressure distribution over ogee-crested weirs
- Supports hydraulic engineering education and research
- Provides clear, visual indication of downstream pressures via manometer tubes
- Enables analysis of flow optimization and discharge characteristics
Why Choose GUNT Ogee-Crested Weir with Pressure Measurement?
The GUNT HM 160.34 Ogee-Crested Weir with Pressure Measurement offers a practical platform for studying flow behavior, pressure distribution, and discharge optimization. Its integrated manometer system and robust design make it ideal for hands-on hydraulic experiments and research applications.
