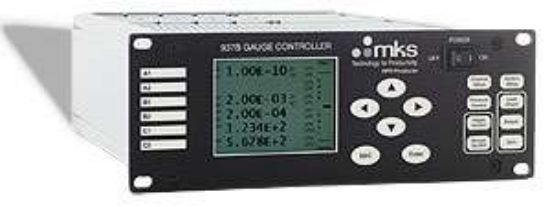

The MKS 937B Vacuum Gauge Controller, Dual Baratron/Piezo (937B-EU-CMNANA-NA) is a digital combination vacuum gauge controller for configurable vacuum pressure measurement systems. This configuration uses the EU country code with a Dual Baratron/Piezo gauge module in slot A, blank gauge slots B and C, and a blank optional communication module position while retaining built-in RS232 and RS485 communication.
Key Features
- Brand: MKS
- Model / Part Number: 937B-EU-CMNANA-NA
- Product Type: Digital combination vacuum gauge controller
- Controller Series: Series 937B
- Country Code: EU
- Gauge Slot A: CM, Dual Baratron/Piezo
- Gauge Slot B: NA, blank
- Gauge Slot C: NA, blank
- Communication Port: NA, blank optional communication module
- Built-In Interfaces: RS232 and RS485
- Maximum Sensor Readout: Up to 6 vacuum gauges, depending on installed modules
- Measurement Range: 1.0 x 10^-11 to 20,000 Torr
- Pressure Units: Torr, millibar, Pascal or microns
- Display: 320 x 240 colour QVGA TFT LCD with back lighting
- Power Requirement: 100 to 240 VAC, 50/60 Hz, 150 W maximum
- Compliance: CE
Note: The NA communication-port code indicates no optional Profibus module. RS232 and RS485 communication are built in.
Benefits
- Supports flexible vacuum monitoring with a configurable controller platform for compatible gauge technologies.
- Provides clear multi-channel visibility through the backlit colour display.
- Helps simplify setup through menu-driven operation and user-selectable pressure units.
- Enables integration with control systems using built-in serial communication.
- Assists leak checking with a logarithmic bar graph display and variable-rate audio signal.
Why Choose the MKS 937B Vacuum Gauge Controller, Dual Baratron/Piezo (937B-EU-CMNANA-NA)?
The MKS 937B-EU-CMNANA-NA is suited to vacuum systems that require a configurable controller with Dual Baratron/Piezo capability in slot A and built-in RS232/RS485 communication. John Morris Group supplies MKS vacuum measurement products for laboratories, process environments and industrial systems requiring reliable pressure monitoring.
