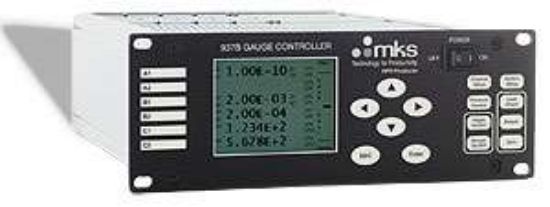

The MKS 937B Vacuum Gauge Controller, CM/CC/HC, EU (937B-EU-CMCCHC-NA) is a configurable digital combination vacuum gauge controller for pressure measurement systems using multiple sensor technologies. This EU country-code configuration is set up with a dual Baratron/Piezo module position, cold cathode module position and hot cathode nude module position, with the standard communication slot left blank.
Key Features
- Brand: MKS
- Model / Part Number: 937B-EU-CMCCHC-NA
- Product Type: Digital combination vacuum gauge controller
- Country Code: EU
- Base Gauge Slot A: CM, dual Baratron/Piezo
- Gauge Choice Slot B: CC/CL, cold cathode
- Gauge Choice Slot C: HC, hot cathode nude
- Communication Port Option: NA, blank
- Sensor Display: Provides simultaneous readout for up to six vacuum gauges
- Measurement Range: 1.0 x 10-11 to 20,000 Torr
- Pressure Units: Torr, millibar, Pascal or microns
- Built-In Communications: RS232 and RS485
- Optional Communication: Profibus DPV1 module slot available
- Set Point Relays: Twelve pressure dependent set points, SPDT relays, 2 amps at 30 VAC
- Display: 320 x 240 colour QVGA TFT LCD with back lighting
- Power Requirement: 100-240 VAC, 50/60 Hz, 150 W maximum
- Operating Temperature: 5°C to 40°C
- Controller Weight: 8 lbs (3.6 kg)
- Compliance: CE
Note: The basic Series 937B includes the controller, power cable, accessory connector kit and instruction manual. Gauge sensors, cables and any additional accessories should be selected to suit the application.
Benefits
- Combines multiple vacuum sensor technologies in one controller for flexible pressure monitoring across a wide measurement range.
- Supports cold cathode, hot cathode, Baratron capacitance manometer, Piezo and Pirani sensor technologies within the 937B platform.
- Improves process control with twelve independently adjustable pressure dependent relay set points.
- Provides clear status visibility through a colour backlit display with up to six pressure displays.
- Allows digital integration through built-in RS232 and RS485 communication connections.
- Assists leak checking with a relative logarithmic bar graph display and variable rate audio signal.
Why Choose the MKS 937B Vacuum Gauge Controller, CM/CC/HC, EU (937B-EU-CMCCHC-NA)?
The MKS 937B-EU-CMCCHC-NA is suitable for vacuum systems requiring a configurable controller with Baratron/Piezo, cold cathode and hot cathode nude gauge support. John Morris Group can assist with sourcing the matching MKS controller configuration and compatible vacuum measurement accessories for laboratory and industrial applications.
