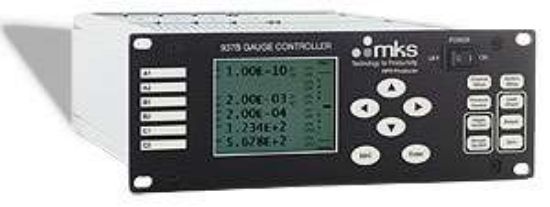

The MKS 937B EU Vacuum Gauge Controller, Hot Cathode/Pirani/Baratron-Piezo (937B-EU-HCCTCM-NA) is a digital combination vacuum gauge controller configured with hot cathode, dual Pirani and dual Baratron/Piezo gauge module capability. It supports flexible vacuum pressure measurement across a wide range of gauging technologies, with simultaneous readout for multiple vacuum gauges and sensors.
Key Features
- Brand: MKS
- Product Type: Digital combination vacuum gauge controller
- Model: 937B
- Configuration: EU country code, Hot Cathode / Pirani / Baratron-Piezo
- Gauge Slot A: HC, Hot Cathode Nude
- Gauge Slot B: CT, Dual Convection Pirani / Standard Pirani
- Gauge Slot C: CM, Dual Baratron / Piezo
- Communication Port: NA, Blank; RS232 and RS485 built in
- Sensor Capacity: Simultaneous readout for up to 6 vacuum gauges or sensors
- Measurement Range: 1.0 x 10^-11 to 20,000 Torr
- Pressure Units: Torr, millibar, Pascal or microns
- Display: 320 x 240 colour QVGA TFT LCD with back lighting
- Set Point Relays: 12 pressure dependent SPDT set points, 2 amps @ 30 VAC
- Power Requirement: 100 - 240 VAC, 50/60 Hz
- Controller Weight: 8 lb (3.6 kg)
- Compliance: CE
Benefits
- Supports mixed vacuum measurement setups using hot cathode, Pirani and Baratron/Piezo gauge technologies in one controller platform.
- Helps simplify monitoring where multiple vacuum gauges need to be viewed from a single display.
- Provides flexible process control with twelve pressure dependent relay set points.
- Built-in RS232 and RS485 communication supports integration with compatible host computer systems.
- Field-upgradeable modular design allows the controller to be reconfigured as vacuum measurement requirements change.
Why Choose the MKS 937B EU Vacuum Gauge Controller, Hot Cathode/Pirani/Baratron-Piezo (937B-EU-HCCTCM-NA)?
The MKS 937B-EU-HCCTCM-NA combines the 937B controller platform with hot cathode, Pirani and Baratron/Piezo gauge module capability for demanding vacuum pressure measurement applications. John Morris Group supplies MKS vacuum measurement instruments for laboratories, research facilities and industrial users across Australia and New Zealand.
