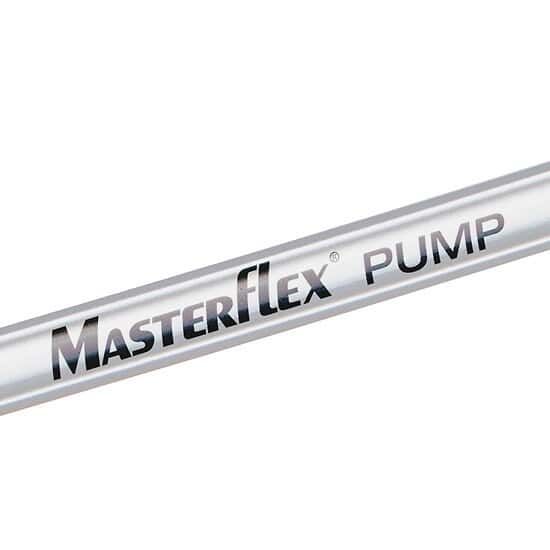

DescriptionPeroxide-cured silicone tubing, L/S 16, 25 ft.
Hose Barb Size (InchShort)0.125
L/S Masterflex tubing size16
Length per Pack (FeetShort)25
Length per pack (m)7.6
Max Flow Rate (mLmin)480
Max pressure (bar)2.7
Max pressure (psi)40
Max Temperature (DegreeC)230
Max Temperature (DegreeF)446
Max Temperature (Dynamic) (DegreeC)100
Max Temperature (Dynamic) (DegreeF)212
Max Vacuum (InchHg)26
Max Vacuum (mmHg)660
Min Temperature (DegreeC)-50
Min Temperature (DegreeF)-58
Min Temperature (Dynamic) (DegreeC)-40
Min Temperature (Dynamic) (DegreeF)-40
Pump SeriesL/S
Resin certificationEU Food 10/2011;FDA;Non-DEHP;Non-Phthalate;RoHS, FDA;Non-DEHP;Non-Phthalate;RoHS, RoHS;USP, European Pharmacopoeia;Non-DEHP;Non-Phthalate;RoHS;USP, EU Food 10/2011;FDA;Non-DEHP;Non-Phthalate;RoHS;USP, EU Food 10/2011;Non-DEHP;Non-Phthalate;RoHS;USP, FDA;USP, European Pharmacopoeia;FDA;USP, FDA;Non-DEHP;Non-Phthalate;RoHS;USP, Non-DEHP;Non-Phthalate, Non-DEHP;Non-Phthalate;RoHS, 1935/2004;ADCF;EU Food 10/2011;European Pharmacopoeia;FDA;Non-DEHP;Non-Phthalate;RoHS;USP, EU Food 10/2011;European Pharmacopoeia;Non-DEHP;Non-Phthalate;RoHS;USP, European Pharmacopoeia;USP, 1935/2004;ADCF;EU Food 10/2011;FDA;Non-DEHP;Non-Phthalate;NSF-51;RoHS;USP, 3A;FDA;USP, FDA, USP
Sterilization MethodAutoclave, Ethylene Oxide
Sterilization Method AutoclaveYes
Sterilization Method EtOYes
Suction Lift (ftH2O)29
Suction Lift (mH2O)8.8
Tubing formulationSilicone (peroxide cured)
Tubing ID (InchShort)0.122
Tubing ID (mm)3.1
