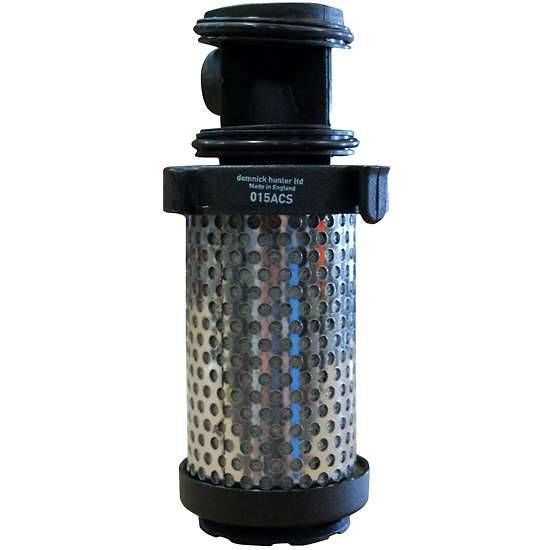

The Masterflex Compressed Air Activated Carbon Filter Element, 42 SCFM, delivers high-efficiency vapor and odor removal using deep-bed activated carbon filtration. Engineered for maximum adsorption of hydrocarbons, vapors, and odors, it enhances residual oil removal when used in tandem with microfilters. Featuring advanced airflow technology, an internal float drain, and a corrosion-resistant Alocrom-treated aluminum housing, this modular filter is designed for reliable, maintenance-friendly performance in demanding compressed air systems. It meets or exceeds ISO 8573.1 air quality standards and includes a 10-year warranty.
Product Features
- Advanced airflow technology makes this the most energy-efficient compressed air filtration system available
- Prefilters and microfilters feature an internal float drain that eases installation and saves initial cost
- Incident monitor (included on most models) alerts you to high differential pressure and need for filter element change
- Housing is fully corrosion protected and carries a 10-year warranty
- Modular filter housing made from Alocrom-treated aluminum with dry powder epoxy finish
- Meets or exceeds ISO 8573.1 air quality standards
- Prefilters: pleated oleophobic nanofiber media, removes particles down to 1 micron; max oil aerosol: 0.5 ppm
- Microfilters: pleated oleophobic nanofiber media, removes particles down to 0.1 micron; max oil aerosol: 0.1 ppm
- Activated carbon filters: deep-bed media adsorbs vapors, gaseous hydrocarbons, and odors; max oil vapor: 0.003 ppm
- Optional mounting clamp available for filter-to-filter or wall installation
Benefits
- Highly effective vapor and odor removal using deep-bed activated carbon media
- Improved system purity when combined with microfilters for residual oil removal
- Durable, corrosion-resistant housing ensures long service life with minimal maintenance
- Reduces downtime and cost with modular, easy-to-install design
- ISO 8573.1 compliant for assured air quality in sensitive operations
- Versatile mounting options with optional clamp for optimized system layout
Why Choose the Masterflex Compressed Air Activated Carbon Filter Element, 42 SCFM?
Ideal for environments where vapor, hydrocarbon, and odor removal is critical, the Masterflex Compressed Air Activated Carbon Filter Element ensures superior air quality with deep-bed adsorption performance. Its rugged design, advanced efficiency, and ISO compliance make it the optimal choice for demanding filtration systems.
