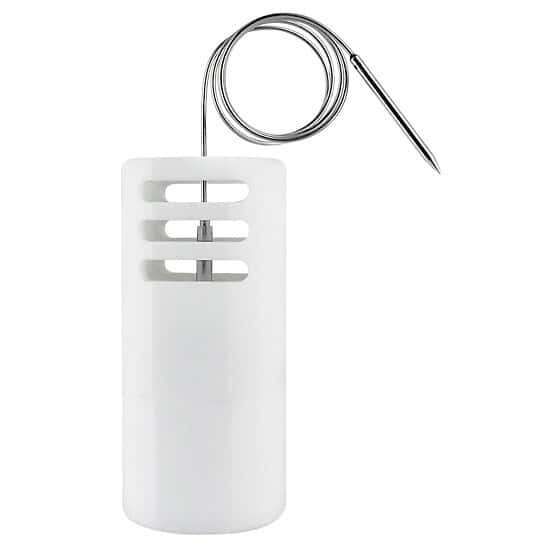

MadgeTech rugged stainless steel data loggers are fully submersible and designed to withstand harsh environments such as autoclaves. Featuring high-accuracy 100 Ω Pt RTD temperature sensors, these devices measure temperatures up to 500°F (260°C), ideal for conveyor ovens, well monitoring, environmental studies, autoclave validation, and more. This model includes a PTFE thermal shield for added protection and an extended operating temperature range from –328 to 482°F (–200 to 250°C). The vented shield covers about 1" (25 mm) up the flexible wire, providing durability while allowing precise measurements. The sharpened penetration-tip probe is attached to a flexible 24” (609 mm) wire for enhanced versatility.
Product Features
- Stands up to harsh environments such as autoclaves
- Accuracy of ±0.18°F (0.1°C) over the entire probe measuring range
- Fully submersible—rugged 316 stainless steel construction with IP68 rating
- Various probe styles, tips, and lengths available to suit your application needs
- High-accuracy 100 Ω Pt RTD temperature sensors
- Measures temperatures up to 500°F (260°C)
- PTFE thermal shield for added protection and extended operating temperature range
- Vented shield covers about 1" (25 mm) up the flexible wire
- Sharpened penetration-tip probe attached to a 24” (609 mm) flexible wire for versatility
- Ideal for conveyor ovens, well monitoring, environmental studies, autoclave validation, and more
- Single- or multi-position docking stations available (one required for use)
- Single-position docking station compatible with multiple data loggers
- Six-position docking station downloads data from multiple loggers simultaneously
- Included software allows easy start, stop, and operation of loggers
- Data available in graphical, tabular, and summary formats in °C, °F, K, or °R
- Automatic data export to Excel for analysis
- One docking station and software copy supports multiple loggers at a single site
What's Included
- Data logger includes a 3.6 V high-temperature lithium battery (user-replaceable)
Benefits
- Reliable performance in extreme temperature and harsh environmental conditions
- PTFE vented shield extends temperature range while protecting the probe and flexible wire
- High accuracy ensures precise temperature measurements for validation
- Durable stainless steel construction ensures longevity and waterproof operation
- Flexible probe wire adds versatility for various applications
- Flexible docking station options for convenient data management
- Comprehensive software simplifies data handling and reporting
- User-replaceable high-temperature lithium battery included
Why Choose the MadgeTech HiTemp1403 Data Logger With Vented Shield?
MadgeTech’s HiTemp1403 Data Logger with a rigid 5" penetration probe, flexible wire, and PTFE vented thermal shield provides accurate and reliable temperature monitoring in challenging environments. Its rugged design, extended temperature range, and advanced software tools make it ideal for autoclave validation, environmental monitoring, and industrial applications requiring flexibility and precision.
