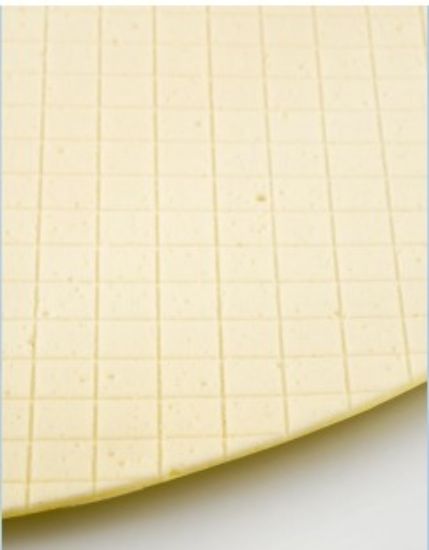

The Logitech EP1 Plain Polishing Pad, 24 in, Single Pad (0CON-487) is an expanded polyurethane CMP pad for precision polishing of hard materials. The plain 24 in / 600 mm EP1-P pad is 0.050 in thick, features pressure-sensitive adhesive backing and is specified by Logitech for the Orbis polishing system.
Key Features
- 24 in / 600 mm plain pad, supplied individually in the exact EP1-P configuration identified as part 0CON-487
- Compatible with the Logitech Orbis, matching the manufacturer-listed polishing system for this pad diameter
- 0.050 in pad thickness, supplied with pressure-sensitive adhesive backing for secure plate attachment
- Controlled-cell EP1 construction, using a foamed elastomer structure designed to improve polishing planarity
- High-hardness polishing surface, with Shore A hardness of 96 and Shore D hardness of 46
- Controlled mechanical response, combining 7.5% dynamic compressibility with 93% elastic rebound
- Porous expanded polyurethane surface, selected to retain abrasive efficiently during CMP processing
- Designed for smaller sample surfaces, with the plain configuration recommended for areas below 20 cm²
- Suitable for hard materials, including silicon, sapphire and optical materials
Benefits
- Helps improve surface planarity through the firm, high-hardness EP1 structure.
- Supports repeatable polishing contact through controlled compression and rapid elastic recovery.
- Promotes efficient abrasive retention for high-quality finishes and controlled surface flatness.
- Allows straightforward and stable installation through the protected PSA backing.
- Provides the exact 600 mm plain-pad configuration specified for compatible Logitech Orbis workflows.
Why Choose the Logitech EP1 Plain Polishing Pad, 24 in, Single Pad (0CON-487)?
Choose the Logitech EP1 Plain Polishing Pad, 24 in, Single Pad (0CON-487) when a firm, PSA-backed CMP pad is required for precision polishing of hard materials on the Logitech Orbis. Its controlled-cell construction combines high hardness, limited compressibility and strong elastic recovery to support consistent surface preparation. John Morris Group supplies genuine Logitech polishing consumables for laboratories and materials-processing facilities across Australia.
