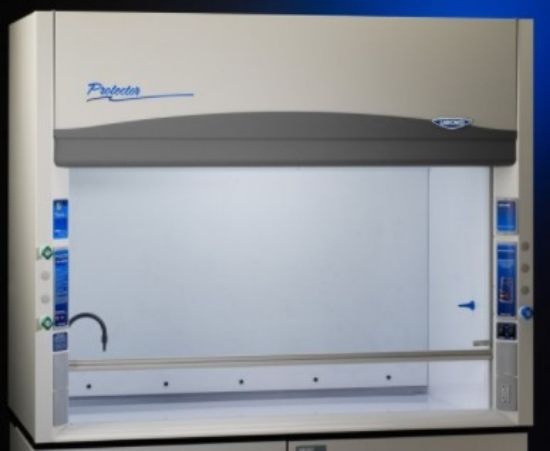

The Labconco Protector PVC Acid Digestion Laboratory Hood is designed for reliable, safe acid digestion work with strong acids. Featuring Type 1 unplasticized polyvinyl chloride liners that resist chemical attack, and durable Lexan polycarbonate sashes that withstand hydrofluoric acid fumes without fogging or etching, this hood ensures optimal safety and durability (not suitable for perchloric acid use).
Product Features
- By-pass airflow design and by-pass block optimize ventilation efficiency
- Powder-coated stainless steel Eco-Foil air foil with Clean-Sweep airflow openings
- Glacier white, powder-coated steel exterior for corrosion resistance
- Cord-Keeper slots on left and right sides of air foil for cable management
- Heat-welded unplasticized PVC liner with 30" interior depth, integral work surface, drainage trough, and pre-set baffles
- PVC liner withstands continuous operating temperatures up to 140°F (60°C) with flame spread less than 25 (ASTM E84)
- Black enamel-coated hardboard supporting surface
- Powder-coated aluminum sash handle with Clean-Sweep openings and slots on stainless steel sash tracks
- 1/4" thick Lexan polycarbonate vertical-rising sash with cable and pulley resists hydrofluoric acid fumes
- Removable front, side, and front access panels for plumbing and electrical wiring access
- Pre-wired LED vapor-proof lighting rated to 50,000 hours with ADA-compliant switches
- Built-in washdown system with internal piping and spray nozzles delivering 0.5-1.0 GPM flow rate
- Washdown fitting on top for external wash ring connection (wash rings not included)
- 12.75" OD PVC exhaust connections
Fixtured Models May Feature
- Two pre-plumbed service fixtures: forged brass valves with brass tubing and plastic serrated hose connector for gas (lower right)
- Copper tubing and gray PVC swivel gooseneck faucet for cold water (lower left)
- Conversion components for gas fixture to air or vacuum included (inlet tubing not provided)
- One pre-wired GFCI duplex electrical receptacle on lower right side; 8' models add one on lower left
Required Accessories (Not Included)
- Dedicated remote PVC blower
- Wash rings and other ductwork
- Base cabinet or stand
Optional Accessories
- Service Fixture Kits
- Electrical Duplex Kits
- Guardian Airflow Monitor Kits
- Sash Stop Kits
- Ceiling Enclosure and Rear Finish Panel Kits
Compliance
- SEFA 1, SEFA 8
- NFPA 45
- ASTM E84-09C
- ASHRAE 110
- ANSI Z9.5
- CFR 29, Part 1910
- UL 61010-1, CAN/CSA C22.2 No. 61010.1
- UL 1805
Benefits
- Durable chemical-resistant PVC liners and Lexan sashes ensure long-lasting performance in acid labs.
- Washdown system and removable panels facilitate quick, thorough cleaning and maintenance.
- Pre-plumbed service fixtures with flexible options speed installation and utility access.
- Meets comprehensive safety standards for reliable, code-compliant lab ventilation.
- Constructed with corrosion-resistant materials to extend product lifespan in harsh environments.
Why Choose the Labconco 5' Protector PVC Acid Digestion Hood 37.7" Exterior Depth?
Ideal for labs handling strong acids like hydrofluoric acid, the Labconco Protector PVC Acid Digestion Hood combines chemical resistance, ease of maintenance, and flexible fixture options to maintain a safe, efficient workspace. Its robust design and compliance with industry standards make it a dependable choice for modern acid digestion applications.
