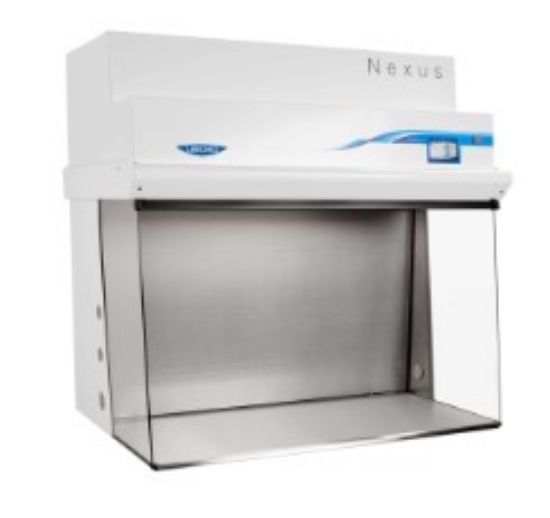

The Labconco 5' Nexus Horizontal Clean Bench offers a 26-inch deep work area with a robust 304 stainless steel interior, designed to protect non-hazardous samples in critical laboratory environments. Featuring laminar, ISO Class 4 airflow driven by an energy-efficient ECM blower with Constant Airflow Profile™ (CAP) technology, this clean bench ensures precise, continuous airflow for demanding applications in life sciences, pharmaceutical R&D, materials science, and compounding pharmacies.
Product Features
- Fully scannable 99.99+% supply HEPA filter; 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System with full color, 5" touchscreen featuring:
- Simplified home screen for easy start up and shut down operations
- Eco mode for idling the blower when the system isn't in use
- Full operational, maintenance and certification logs for detailed record keeping
- Numeric and visual HEPA filter life graphic for easy filter monitoring
- Password security lock (optional activation) requiring user/admin password to operate
- Status line for alarm conditions and alerts at 20%, 10%, and 0% filter life
- Interval/elapsed timer for experiment monitoring
- UV light timer (on UV models)
- Interface available in 8 languages
- Glass side panels
- Spill-Stopper design protects HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel side wall with one utility pass-through port and two service fixture punch-outs
- Electrical outlets - Ceiling mount, flat stainless steel cover
- Right side outlet on 3' and 4' models; right and left side outlets on 5'-8' models
- 115V GFCI, double receptacle with max amperage draw 5A
- 230V, single receptacle with max amperage draw 3A
- 30.2" interior height
- Optic white epoxy-coated steel exterior
- Nominal face velocity 0.43 m/s
- 3 m power cord with plug
- Five-year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Widths: 3', 4', 5', 6'
- Interior depth: 21" or 26"
- Standard Interior: Epoxy coated steel interior with non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and stainless steel work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled epoxy-coated steel, non-welded telescoping base stand with leveling feet
Compliance
- ETL Listed
- UL 61010.1 Certified
- CAN/CSA 22.2 No. 61010-1 Certified
- CE and UKCA conformity marking
- ISO Class 4 clean conditions per ISO 14644-1 and 2
Benefits
- Ensures protection of critical, non-hazardous samples with ISO Class 4 laminar airflow
- Energy-efficient ECM motor with CAP technology provides consistent airflow and lowers power consumption
- Durable stainless steel interior offers effortless cleaning and long-lasting resistance to chemicals and wear
- Intuitive Nexus OS touchscreen simplifies operation, monitoring, and compliance documentation
- UV lamp option enhances sterilization capabilities for added safety
- Spill-Stopper design protects critical HEPA filter components from liquid damage
Why Choose the Labconco 5' Nexus Horizontal Clean Bench, 26" Deep Work Area, Stainless Steel Interior, Laminar ISO Class 4 Airflow, Intelligent OS with 5” Touchscreen, ECM Motor with CAP Technology, Includes UV and Base Stand?
The Labconco Nexus Horizontal Clean Bench combines advanced airflow technology, durable stainless steel construction, and intelligent operating software to deliver superior contamination control and operational efficiency. Its spacious 26" deep work area and UV sterilization option make it ideal for pharmaceutical, life sciences, and materials science labs demanding precision and reliability. With comprehensive compliance certifications and flexible configurations, this clean bench is the premier choice for modern laboratory environments.
