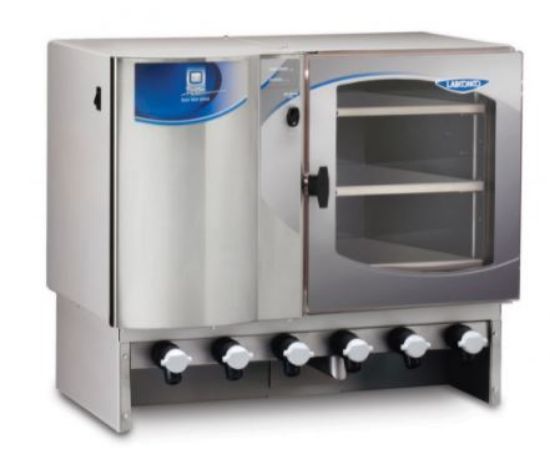

The Labconco FreeZone Bulk Tray Dryer, Manifold, Isolation Valve (780601340) is a 230 V, 50/60 Hz tray dryer designed for lyophilising moderate to large bulk sample loads or multiple small batches of vials and serum bottles. This China/Australia configuration includes a 6-port manifold and isolation valve, connecting to a compatible FreeZone 6, 12 or 18 Liter Console Freeze Dryer manufactured after July 2017 for heated-shelf tray drying with Lyo-Works OS monitoring.
Key Features
- Brand: Labconco
- Model / Part Number: 780601340
- Product Type: FreeZone Bulk Tray Dryer with 6-Port Manifold and Isolation Valve
- Configuration: China/Australia electrical configuration
- Electrical Requirements: 230 V, 50/60 Hz
- Current: 4 A
- Application: Bulk lyophilisation and small-batch vial or serum bottle freeze drying
- Compatible Freeze Dryers: FreeZone 6, 12 or 18 Liter Console Freeze Dryers manufactured after July 2017
- Manifold: Built-in 6-port tray dryer manifold
- Manifold Dimensions: 30.0 in. W x 16.5 in. D x 7.0 in. H / 76.2 x 41.9 x 17.8 cm
- Manifold Valves: Six valves for 1/2 in. or 3/4 in. flask adapters
- Isolation Valve: Included to isolate the tray dryer from the freeze dryer
- Shelves: Three heated shelves
- Shelf Dimensions: 12.7 in. W x 16.6 in. D / 32.2 x 42.2 cm each
- Total Shelf Area: 210 sq. in. per shelf
- Maximum Shelf Capacity: Chamber may accommodate two additional shelves, sold separately
- Shelf Heating: 200 W heater on each shelf
- Maximum Shelf Temperature: +60 °C
- Temperature Control: Microprocessor maintains system temperature within ±3 °C of set point
- Sample Temperature Monitoring: Three sensor probes included, with connections for two additional sensors
- Door: 1 in. thick acrylic door with silicone gasket and latch
- Vacuum Release: Vacuum release valve with knob for venting the chamber
- Control Integration: System programming displayed through the connected FreeZone Console Freeze Dryer
- Program Capacity: Up to 30 programs with up to 16 steps each through Lyo-Works OS
- Data Logging: Data displayed in table or chart format on the connected freeze dryer, exportable via USB or Ethernet
- Dimensions: 32.2 in. W x 21.5 in. D x 27.1 in. H / 81.8 x 54.6 x 68.8 cm
- Shipping Weight: 283 lb / 128 kg
- Required Accessories: Compatible FreeZone Console Freeze Dryer and vacuum pump
Note: Samples must be pre-frozen before loading. A FreeZone 6, 12 or 18 Liter Console Freeze Dryer manufactured after July 2017 and a vacuum pump with at least 163 L/min displacement, 0.002 mBar ultimate pressure and a fitting suitable for 3/4 in. ID vacuum hose are required but not included.
Benefits
- Supports moderate to large bulk lyophilisation loads and multiple small batches of vials or serum bottles.
- Expands compatible FreeZone console freeze dryers with heated tray drying, 6-port manifold and isolation valve functionality.
- Provides broad glassware flexibility through six manifold valves for 1/2 in. or 3/4 in. flask adapters.
- Helps shorten the time needed to re-establish working vacuum levels by isolating the tray dryer from the freeze dryer.
- Provides a practical method for determining freeze drying end point using the isolation valve.
- Improves process visibility through real-time tray dryer parameter display on the connected FreeZone touchscreen.
- Supports repeatable workflows with Lyo-Works OS programming, data logging and export via USB or Ethernet.
- Helps monitor product conditions using included sample temperature probes and additional sensor connections.
Why Choose the Labconco FreeZone Bulk Tray Dryer, Manifold, Isolation Valve (780601340)?
The Labconco FreeZone Bulk Tray Dryer, Manifold, Isolation Valve provides heated-shelf bulk lyophilisation, 6-port manifold drying and isolation valve control for compatible FreeZone console freeze dryers. John Morris Group supplies Labconco freeze drying systems and accessories for research, pharmaceutical, environmental and quality control laboratories across Australia and New Zealand.
