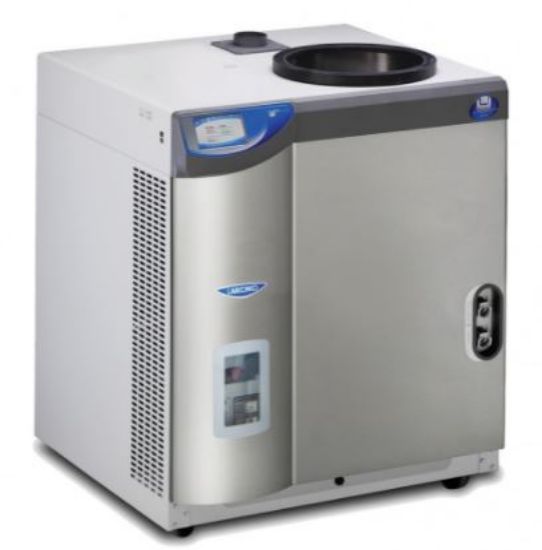

The Labconco FreeZone 6L -84°C Console Freeze Dryer with stainless steel coil, collector, and purge valve is engineered for lyophilizing moderate to large sample loads or numerous small batches. Its dual refrigeration system achieves ultra-low temperatures, while the intuitive Lyo-Works OS provides full-color touchscreen control and real-time monitoring. Designed with robust stainless steel components and a built-in purge valve, this freeze dryer combines reliability, flexibility, and user-friendly features ideal for demanding laboratory workflows.
Product Features
- Upright stainless steel collector coil holds 6L of ice before defrosting; 3/4" thick stainless steel collector lid with neoprene gasket
- Console cabinet with interior space for vacuum pump (sold separately) and two-piece removable front panel with viewing window
- Clear 3/4" thick acrylic chamber lid with neoprene gasket
- Full-color, 5" capacitive touch screen with Lyo-Works OS:
- Real-time display of collector temperature, vacuum level, and optional End-Zone end point detection
- Startup mode for automatic/manual collector cool-down and vacuum pull-down
- Operating mode (standby/run)
- Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
- Data logging in table or chart format, exportable via USB or Ethernet
- Settings for language, time, time zone, temperature units (°C/°F), and vacuum units (mBar, Torr, Pa)
- Programmable alerts via Ethernet to user emails
- Display settings: brightness, touch sounds (on/off), screen timeout (on/off)
- Maintenance alerts: vacuum pump oil change, refrigeration cleaning, total operating hours, line voltage offset
- Level-specific security lock-out to prevent unauthorized changes
- Hot gas defrost with auto shut-off at +60°C
- On/standby switch
- Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in drain line
- Vacuum control valve to maintain vacuum level set point
- Vacuum break valve automatically bleeds air if power is lost; automatic restart after power outages under ~5 minutes
- Side-mounted USB port and rear-mounted Ethernet connection
- Front-mounted quick-disconnect drain hose fitting and side-mounted lanyard with hose connector; includes 18" of 1/4" ID silicone tubing and clamp
- Internal electrical receptacle for vacuum pump connection; 3-wire electrical cord with plug
- 3/4" OD vacuum connection; includes 36" of 3/4" ID vacuum hose and two clamps
Note: Vacuum pump, drying accessory, and freeze dry glassware (if not bulk freeze drying) are required but not included.
Options Include
- PTFE-coated collector coil and chamber for processing corrosive compounds
- Built-in stainless steel mini vacuum drying chamber with 50W heater, microprocessor control to +60°C, and 3/4" thick clear acrylic lid
Required Accessories (Not Included)
- Vacuum pump (≥98L/min displacement, 0.002mBar ultimate pressure, compatible with 3/4" ID vacuum hose)
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- Ultra-low -84°C collector supports low eutectic point solvents like acetonitrile
- Robust stainless steel construction resists corrosion and ensures long service life
- Comprehensive touch screen interface simplifies operation and monitoring
- Purge valve protects the vacuum pump and system integrity
- Compact design fits busy labs and integrates vacuum pump storage
- Reliable automatic restart after short power outages keeps processes running
Why Choose the FreeZone 6L -84°C Console Freeze Dryer with Stainless Steel Coil and Collector, Purge Valve?
Engineered for precision and durability, this freeze dryer delivers consistent results for moderate to large sample loads. The addition of a purge valve, intuitive controls, and flexible accessory support make it ideal for research labs, pharmaceuticals, and industrial applications requiring robust and user-friendly freeze-drying solutions.
