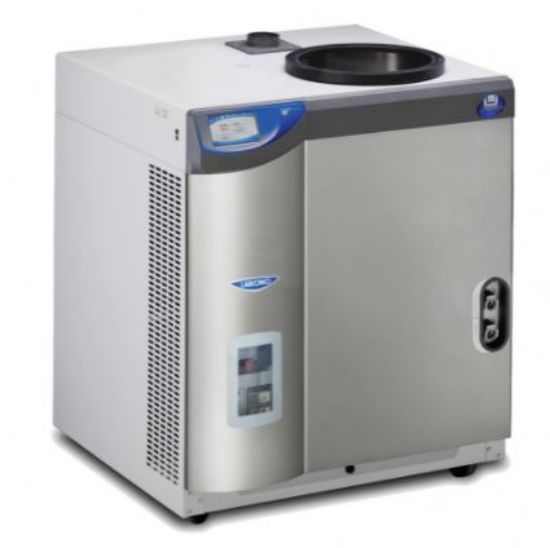

The Labconco FreeZone 6L -84°C Console Freeze Dryer with PTFE-coated collector, integrated purge valve, and mini chamber is engineered for efficient lyophilization of moderate to large sample loads, including corrosive compounds. Its advanced Lyo-Works OS touchscreen, robust stainless steel build, and ultra-low temperature capability ensure high performance and durability for demanding laboratory environments.
Product Features
- Upright PTFE-coated stainless steel collector coil holds 6L of ice before defrosting; stainless steel collector lid, 3/4" thick, with neoprene gasket
- Console cabinet with interior space for vacuum pump (sold separately) and two-piece removable front panel with viewing window
- Clear acrylic chamber lid, 3/4" thick, with neoprene gasket
- Brushed stainless steel and glacier white, powder-coated steel exterior with blue accents
- Full color, 5" capacitive touch screen with Lyo-Works OS:
- Real-time display of collector temperature, vacuum level, and optional End-Zone end point detection system
- Start-up mode for collector cool-down and vacuum pull-down (automatic or manual)
- Operating mode (standby or run)
- Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
- Data logging in table or chart format, exportable via USB or Ethernet
- Settings: language, time, time zone, temperature (°C or °F), and vacuum (mBar, Torr, Pa)
- Programmable alerts via Ethernet to user emails
- Display settings: brightness, touch sounds (on/off), and screen time out (on/off)
- Maintenance alerts for vacuum pump oil change, refrigeration cleaning, total operating hours, and line voltage offset
- Level-specific security lock-out prevents unauthorized changes
- Hot gas defrost with auto shut off at +60°C
- On/standby switch
- Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
- Vacuum control valve maintains vacuum level set point
- Vacuum break valve automatically restarts if power outage is under ~5 minutes; if over ~5 minutes and collector warms, it won’t restart
- Side-mounted USB port and rear-mounted Ethernet connection
- Front-mounted quick-disconnect drain hose fitting and side-mounted lanyard with hose connector; includes 18" of 1/4" ID silicone tubing and clamp
- Internal electrical receptacle for vacuum pump connection; 3-wire cord with plug
- 3/4" OD vacuum connection; includes 36" of 3/4" ID vacuum hose and two clamps
Note: Vacuum pump, drying accessory, and freeze dry glassware (if not bulk freeze drying) are required but not included.
Options Include:
- Built-in stainless steel mini vacuum drying chamber with 50W heater (microprocessor control to +60°C) and clear acrylic lid (chamber not cooled)
Required Accessories (Not Included)
- Vacuum pump with ≥98L/min displacement, 0.002mBar ultimate pressure, suitable for 3/4" ID hose
- Drying accessory
- Freeze dry glassware if not bulk freeze drying
Benefits
- PTFE coating resists corrosion for greater durability and extended lifespan
- Ultra-low -84°C collector ideal for solvents with low eutectic points
- Integrated purge valve and mini chamber add flexibility for complex applications
- Advanced Lyo-Works OS simplifies monitoring and control
- Compact console design saves valuable lab space
- Auto restart after short power outages reduces downtime
Why Choose the FreeZone 6L -84°C Console Freeze Dryer with PTFE-Coated Coil, Purge Valve & Mini Chamber?
Built for labs processing corrosive and sensitive samples, this model delivers reliable freeze drying with PTFE-coated durability, intuitive touchscreen control, and a space-saving design — ideal for research, pharma, and industrial labs demanding precision and longevity.
