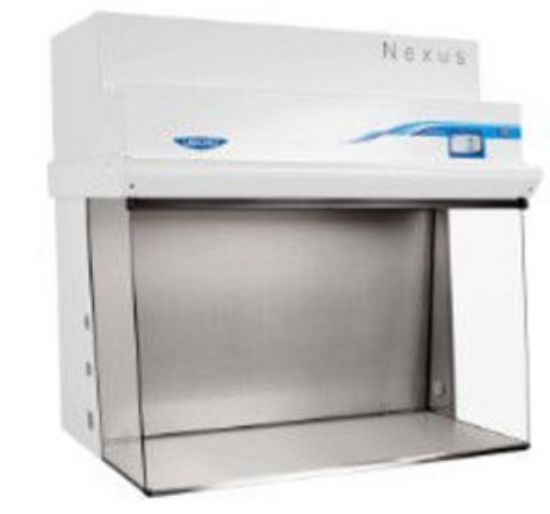

The Labconco 8' Nexus Horizontal Clean Bench with a 21" deep work area and standard interior is designed to protect non-hazardous applications, meeting the demanding requirements of life sciences, materials science, pharmaceutical R&D, and compounding pharmacies. It offers an ISO Class 4 clean airflow environment to safeguard critical, non-hazardous samples. Laminar airflow is provided by an ECM blower equipped with Constant Airflow Profile (CAP™) technology, ensuring continuous, precise, and energy-efficient airflow with long-lasting HEPA filters.
Product Features
- Fully scannable 99.99+% supply HEPA filter; 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System and full color, 5" touchscreen featuring:
- Simplified home screen for easy start-up and shut down operations
- Eco mode for idling the blower when the system isn't in use
- Full operational, maintenance, and certification logs for detailed record keeping
- Numeric and visual HEPA Filter Life graphic for easy HEPA filter monitoring
- Password security lock (optional activation) requiring user or admin password to operate the cabinet
- Status line for alarm conditions and alerts at 20%, 10%, and 0% filter life remaining
- Interval/elapsed timer for experiment monitoring
- UV light timer (on models with UV)
- Supports 8 languages
- Glass side panels
- Spill-Stopper design protects HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to help extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel side wall with one utility pass-through port and two service fixture punch-outs
- Electrical outlets: Ceiling mount, flat stainless steel cover; right side on 3' and 4' models, right and left side on 5'-8' models; 115V GFCI double receptacle (max 5A); 230V single receptacle (max 3A)
- 30.2" interior height
- Optic white epoxy-coated steel exterior
- Nominal face velocity 0.43 m/s
- 3 m power cord with plug included
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Available widths: 3', 4', 5', 6', and 6'
- Interior depths: 21" or 26"
- Standard Interior: Epoxy coated steel interior and non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and stainless steel work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled epoxy coated steel, non-welded telescoping base stand with leveling feet
Compliance
- ETL listed
- UL 61010.1
- CAN/CSA 22.2 No. 61010-1
- CE and UKCA conformity marking
- ISO Class 4 conditions per ISO 14644-1 and 2
Benefits
- Reliable ISO Class 4 laminar airflow to protect critical non-hazardous samples
- Energy-efficient ECM blower with CAP™ technology delivers precise, continuous airflow
- Intuitive Nexus OS touchscreen simplifies operation and compliance management
- Durable tempered safety glass and standard epoxy coated steel interior ensure easy cleaning and longevity
- Spill-Stopper design and prefilters protect HEPA filter and extend its life
- Remote connectivity and data export enhance maintenance and quality assurance
- UV lamp option with safety interlock for added disinfection capabilities
Why Choose the Labconco 8' Nexus Horizontal Clean Bench, 21" Deep Work Area, Standard Interior, Laminar ISO Class 4 Airflow, Intelligent OS, 5" Touchscreen, ECM Motor with CAP Technology, UV, 230V?
The Labconco 8' Nexus Horizontal Clean Bench offers advanced, energy-efficient laminar airflow with ECM motor and CAP™ technology, combined with a user-friendly Nexus OS touchscreen. Its standard interior and UV lamp option provide versatility and robust protection for demanding non-hazardous laboratory applications.
