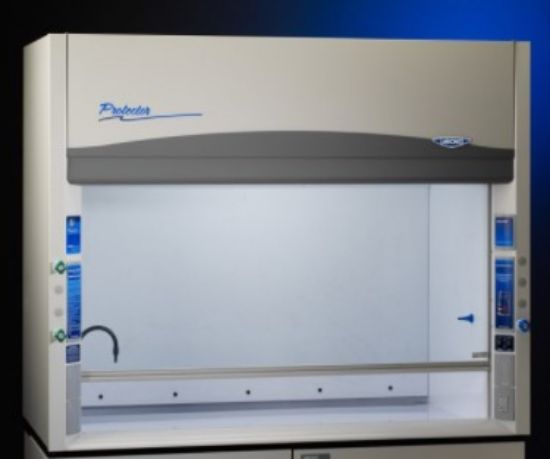

The Labconco 5' Protector PVC Perchloric Acid Hood is designed specifically for safe laboratory use with perchloric acid. Featuring a durable, heat-welded unplasticized PVC liner and built-in washdown system, it ensures thorough rinsing to prevent accumulation of reactive perchloric salts. Its corrosion-resistant design and integrated service fixtures make it an ideal benchtop hood for chemical safety and laboratory efficiency.
Product Features
- By-pass airflow design and by-pass block for optimal containment
- Powder-coated stainless steel Eco-Foil air foil with Clean-Sweep airflow openings
- Glacier white, powder-coated steel exterior with Cord-Keeper slots on both sides
- Heat-welded unplasticized PVC liner (30.0" interior depth) with integral work surface, drainage trough, and pre-set baffle(s)
- PVC liner withstands up to 140° F continuous operating temperature and has a flame spread less than 25 per ASTM E84
- Black enamel-coated hardboard supporting surface
- Powder-coated aluminum sash handle with Clean-Sweep openings and slots on stainless steel sash tracks
- 3/16" thick tempered safety glass vertical-rising sash with cable and pulley, suitable for perchloric acid use
- Removable front, side, and front access panels for easy access to plumbing and electrical wiring
- Pre-wired LED lighting with vapor-proof design and ADA-compliant switches, rated to 50,000 hours
- Built-in washdown system with internal piping and spray nozzles (0.5-1.0 GPM flow rate)
- Washdown fitting on top of hood for external wash rings connection (wash rings not included)
- 12.75" OD PVC exhaust connection(s)
Fixtured Models May Feature
- Two pre-plumbed service fixtures with forged brass valves: lower right side with brass tubing and plastic serrated hose connector for gas
- Lower left side with copper tubing and gray PVC swivel gooseneck faucet for cold water
- Components for converting lower right fixture to air or vacuum (inlet tubing not provided)
- One pre-wired GFCI electrical duplex receptacle on lower right side
- Additional GFCI duplex receptacle on lower left side on 8' models only
Required Accessories (Not Included)
- Dedicated remote PVC blower
- Wash rings and other ductwork
- Base cabinet or stand
Optional Accessories
- Service Fixture Kits
- Electrical Duplex Kits
- Guardian Airflow Monitor Kits
- Sash Stop Kits
- Ceiling Enclosure and Rear Finish Panel Kits
Compliance
- SEFA 1
- NFPA 45
- ASTM E84-09C
- ASHRAE 110
- ANSI Z9.5
- SEFA 8
- CFR 29, Part 1910
- UL 61010-1
- CAN/CSA C22.2 No. 61010.1
- UL 1805
Benefits
- Comprehensive washdown system prevents buildup of reactive perchloric salts
- Durable PVC liner resists chemical attack and withstands elevated temperatures
- Modular access panels facilitate easy maintenance and servicing
- Pre-plumbed service fixtures provide flexible laboratory utilities
- High-efficiency airflow design enhances operator safety
- LED lighting and ergonomic controls improve usability and visibility
Why Choose the Labconco 5' Protector PVC Perchloric Acid Hood 37.7" Exterior Depth?
This lab hood combines chemical resistance, user safety, and operational flexibility for perchloric acid applications. With proven durability and smart design features, it supports a clean, safe, and efficient laboratory environment while complying with critical safety standards.
