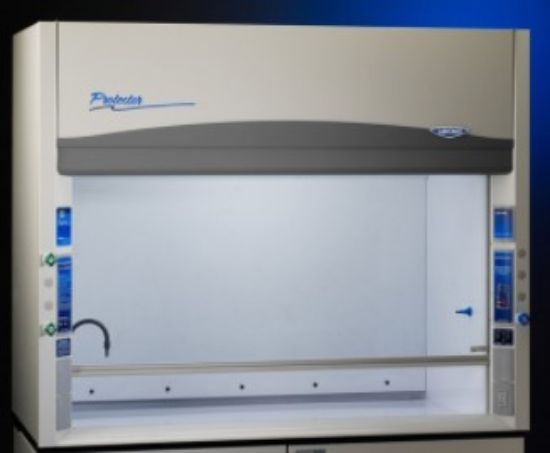

The Labconco 4' Protector PVC Perchloric Acid Hood is designed specifically for safe laboratory use with perchloric acid. Featuring a heat-welded, unplasticized PVC liner and integral washdown system, this hood prevents buildup of reactive salts and ensures easy cleaning. Its durable construction and built-in service fixtures make it ideal for demanding lab environments.
Product Features
- By-pass airflow design and by-pass block for consistent airflow
- Powder-coated stainless steel Eco-Foil™ air foil with Clean-Sweep™ airflow openings
- Glacier white, powder-coated steel exterior
- Heat-welded unplasticized PVC liner (30.0" interior depth) with integral work surface, drainage trough, and pre-set baffle(s)
- PVC liner withstands up to 140°F (60°C) and has flame spread less than 25 per ASTM E84
- Black enamel-coated hardboard supporting surface
- Powder-coated aluminum sash handle with Clean-Sweep™ openings and slots
- 3/16" thick tempered safety glass vertical-rising sash with cable and pulley, suitable for perchloric acid use
- Removable front, side, and access panels for easy maintenance
- Pre-wired LED lighting with vapor-proof design, ADA-compliant switches, rated for 50,000 hours
- Built-in washdown system with internal piping and spray nozzles (max flow rate 0.5–1.0 GPM)
- Washdown fitting on top for external wash rings connection (not included)
- 12.75" OD PVC exhaust connection(s)
Fixtured Models May Feature
- Two pre-plumbed service fixtures: lower right with brass tubing and plastic serrated hose connector for gas, lower left with copper tubing and gray PVC swivel gooseneck faucet for cold water
- Conversion components provided for adapting lower right fixture to air or vacuum (inlet tubing not included)
- One pre-wired GFCI electrical duplex receptacle on lower right; on 8' models, an additional duplex on lower left
Required Accessories (Not Included)
- Dedicated remote PVC blower
- Wash rings and other ductwork
- Base cabinet or stand
Optional Accessories
- Service Fixture Kits
- Electrical Duplex Kits
- Guardian Airflow Monitor Kits
- Sash Stop Kits
- Ceiling Enclosure and Rear Finish Panel Kits
Compliance
- SEFA 1, SEFA 8
- NFPA 45
- ASTM E84-09C
- ASHRAE 110
- ANSI Z9.5
- CFR 29, Part 1910
- UL 61010-1
- CAN/CSA C22.2 No. 61010.1
- UL 1805
Benefits
- Safe and reliable for perchloric acid use with corrosion-resistant liner
- Integral washdown system simplifies decontamination
- Pre-installed service fixtures add convenience and functionality
- Energy-efficient LED lighting enhances visibility
- Easy maintenance with removable panels
- Compact design fits modern lab spaces
Why Choose the Labconco4' Protector PVC Perchloric Acid Hood 37.7" Exterior Depth with 2 Service Fixtures?
Combining durability, safety, and ease of maintenance, the Labconco 4' Protector PVC Perchloric Acid Hood with service fixtures is a trusted solution for laboratories working with reactive acids. Its advanced features ensure compliance, protection, and convenience in one compact unit.
