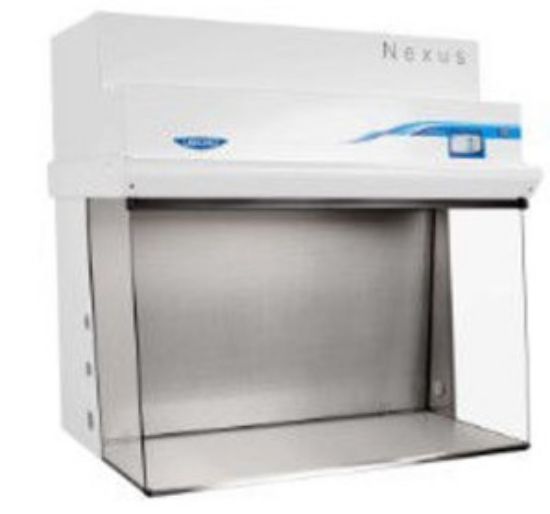

The Labconco 3' Nexus Horizontal Clean Bench with standard interior is engineered to protect non-hazardous applications, meeting the rigorous demands of life sciences, materials science, pharmaceutical R&D, and compounding pharmacies. Delivering ISO Class 4 laminar airflow powered by an energy-efficient ECM blower with Constant Airflow Profile™ (CAP) technology, it ensures continuous, precise airflow and extended HEPA filter life. Equipped with the intuitive Nexus OS™ featuring a full color 5” touchscreen, it simplifies operation, monitoring, and compliance management. This model includes a 21" deep work area, tempered safety glass, and a factory-supplied base stand for added convenience and stability.
Product Features
- Fully scannable 99.99+% supply HEPA filter; 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System with full color, 5" touchscreen featuring:
- Simplified home screen for easy start up and shut down operations
- Eco mode for idling the blower when not in use
- Full operational, maintenance, and certification logs for detailed record keeping
- Numeric and visual HEPA Filter Life graphic for easy monitoring
- Password security lock (optional activation)
- Status line alerts when filter life drops to 20% and 10%, alarming at 0%
- Interval/elapsed timer for experiment monitoring
- UV light timer (on models with UV)
- 8 language options
- Glass side panels
- Spill-Stopper design to protect HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to help extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel side wall with one utility pass-through port and two service fixture punch-outs
- Electrical outlet(s)-Ceiling mount, flat stainless steel cover:
- R side on 3' and 4' models; R and L side on 5'-8' models
- 115V GFCI, double receptacle, max draw 5A; 230V single receptacle, max draw 3A
- 30.2" interior height
- Optic White epoxy-coated steel exterior
- Nominal face velocity 0.43 m/s
- 3 m power cord with plug
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Widths: 3', 4', 5', 6', and 8'
- Interior depths: 21" or 26"
- Standard Interior: Epoxy coated steel interior and non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and stainless steel work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled, epoxy coated steel, non-welded telescoping base stand with leveling feet
Compliance
- ETL listed
- UL 61010.1
- CAN/CSA 22.2 No. 61010-1
- CE and UKCA Conformity marking
- ISO Class 4 conditions per ISO 14644-1 and 2
Benefits
- ISO Class 4 laminar airflow protects critical, non-hazardous samples
- Energy-efficient ECM motor with CAP™ ensures precise, reliable airflow
- Nexus OS™ 5” touchscreen simplifies monitoring and compliance record keeping
- Factory-included base stand for quick setup and stability
- Quiet, low-maintenance design perfect for sensitive lab environments
- Flexible configurations for varied lab sizes and workflows
Why Choose the Labconco 3' Nexus Horizontal Clean Bench, 21" Deep Work Area, Standard Interior, Features laminar, ISO Class 4 Airflow, ECM Motor with CAP, Intelligent OS, 5” Touchscreen, Includes Base Stand?
Designed for modern labs needing dependable, contamination-free environments, the Labconco Nexus Horizontal Clean Bench offers advanced airflow technology, intuitive touchscreen control, and durable construction. With ISO Class 4 performance, standard interior, and a factory-included base stand, it’s the ideal choice for life sciences, compounding pharmacies, and research labs seeking reliable sample protection and user-friendly operation.
