The GUNT Kinematic Model Whitworth Quick Return Mechanism demonstrates non-uniform stroke movement using a classic quick-return system. This mechanism is commonly used in shaping tools, packaging machines, and transport equipment due to its efficient forward and return motion dynamics.
Product Features
- Demonstrates the Whitworth mechanism, also known as the quick-return mechanism
- Produces non-uniform stroke movement with slow forward and fast backward motion
- Used in tools, packaging, and transport machinery for efficient cyclic operations

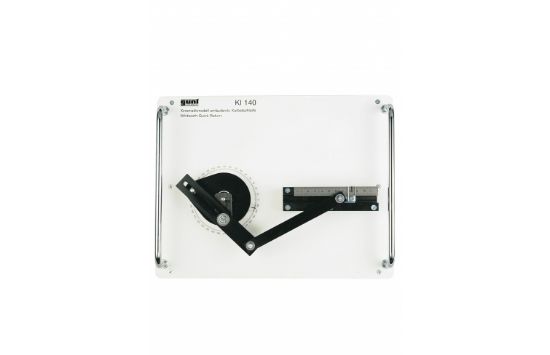

- Includes drive disk with crank and coupling, driving rod, and cylinder to replicate the full mechanism
- Angle is adjusted using the crank disk, with an integrated angle scale on the base plate
- Stroke measured with a millimetre-precise steel ruler attached to the cylinder
- Mounted on a robust base plate for stable operation during demonstrations
- Two side handles for easy portability and stackable storage
Benefits
- Hands-on understanding of quick-return motion and its mechanical advantages
- Precision components allow accurate observation and measurement of motion characteristics
- Durable and compact design ideal for mechanical engineering education and training labs
Why Choose the GUNT Kinematic Model Whitworth Quick Return Mechanism?
This model offers a clear and practical view of non-uniform motion principles. With its robust construction and accurate scaling, it is ideal for demonstrating the quick-return mechanism in technical training and engineering studies.
