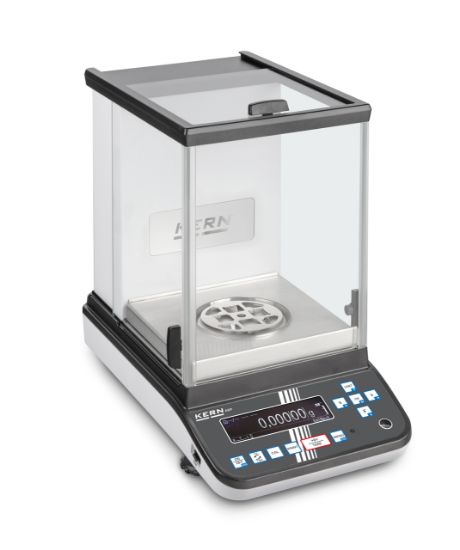

The KERN ABP Analytical Balance, 102/220 g, Dual Range (ABP-200-5DM) is a premium laboratory analytical balance with the latest Single-Cell Generation for extremely rapid and stable weighing results. It provides dual weighing ranges of 102 g and 220 g, readability of 0.00001 g and 0.0001 g, automatic internal calibration, a glass draught shield, OLED display and RS-232 plus USB interfaces for demanding analytical weighing workflows.
Key Features
- Brand: KERN
- Model / Part Number: ABP-200-5DM / ABP 200-5DM
- Product Type: Laboratory analytical balance
- Product Family: ABP
- Weighing Capacity: 102 g / 220 g
- Readability: 0.00001 g / 0.0001 g
- Readability In Carat: 0.0001 ct / 0.001 ct
- Weighing Capacity In Carat: 1100 ct
- Verification Scale Interval: 0.001 g / 0.001 g
- Minimum Weight: 0.001 g
- USP Minimum Weight: 100 mg
- Typical USP Minimum Weight: 14 mg
- Reproducibility: 0.00005 g / 0.0001 g
- Typical Reproducibility: 0.000007 g
- Linearity: ±0.0001 g / ±0.0002 g
- Resolution: 10,200,000 / 2,200,000
- Construction Type: Multi-division balance
- Weighing System: Single-Cell
- Calibration Method: Automatic internal calibration and manual adjustment with internal weight
- Automatic Adjustment: Temperature deviation of 1°C or time interval of 4 h
- Stabilisation Time: 8 s / 2 s
- Warm-Up Time: 8 h
- Units: g, mg, ct
- Tolerance Weighing Signal: Visual
- Functions: Sum memory, recipe weighing, percentage determination, density determination, tolerance weighing, counting, capacity display and standby function
- Counting Resolution: 220,000 under laboratory conditions
- Smallest Piece Weight: 1 mg under laboratory conditions; 10 mg under normal conditions
- Reference Quantities: 10, 20, 50, 100

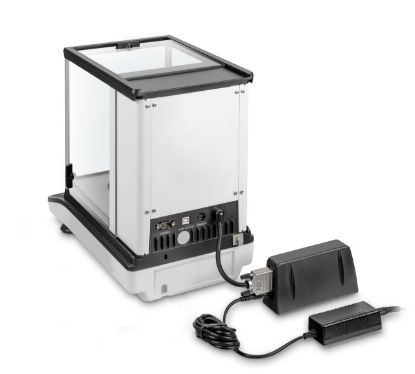

- Interfaces: RS-232 standard, USB host/master and USB device

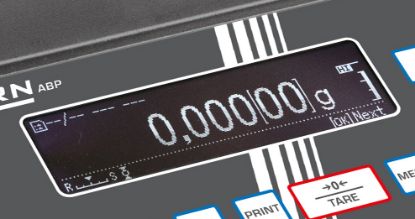

- Display Type: OLED with self-luminous LED backlight
- Display Digit Height: 12 mm
- Weighing Surface: Ø91 mm
- Weighing Plate Material: Stainless steel
- Draught Shield Material: Glass
- Draught Shield Inner Dimensions: 170 x 132 x 221 mm
- Draught Shield Outer Dimensions: 180 x 259 x 221 mm
- Housing Material: Cast aluminium and plastic
- Housing Dimensions: 213 x 367 x 345 mm
- Underfloor Weighing: Hook included in delivery
- Power Input: 100-240 V AC, 50/60 Hz
- Device Input: 12 V, 1 A
- Included Plug Adapters: EURO, AUS, UK, US and CH
- Ambient Temperature: 10°C to 30°C
- Maximum Humidity: 80%
- Storage Temperature: -10°C to 50°C
- Accuracy Class: I
- Conformity Assessment: Possible ex works
- Net Weight: Approximately 8 kg
- Gross Weight: Approximately 12 kg
- Shipping Weight: 23.9 kg
- Packaging Dimensions: 382 x 585 x 535 mm
- GTIN/EAN: 4045761213944
- REACH Classification: No prohibited substances
Note: Optional conformity assessment 965-201, DAkkS calibration 963-101 and certificate of conformity 969-517 are available separately. Initial verification must be ordered with the balance when required.
Benefits
- Supports highly precise analytical weighing with dual range capacity and readability down to 0.00001 g.
- Maintains accuracy across changing conditions with automatic internal calibration at 1°C temperature deviation or every 4 hours.
- Provides rapid, stable results through KERN Single-Cell weighing technology.
- Supports regulated and traceable workflows with GLP/ISO functions, user management and optional conformity assessment.
- Improves data transfer flexibility with RS-232, USB host and USB device interfaces.
- Supports advanced laboratory workflows including recipe weighing, density determination, percentage weighing, counting and tolerance weighing.
Why Choose the KERN ABP Analytical Balance, 102/220 g, Dual Range (ABP-200-5DM)?
The KERN ABP Analytical Balance, 102/220 g, Dual Range (ABP-200-5DM) combines dual-range analytical weighing, automatic internal calibration, Single-Cell performance and modern data interfaces for demanding laboratory applications. John Morris Group supplies this KERN analytical balance for Australian laboratories requiring verified manufacturer specifications, high precision and reliable weighing performance.
