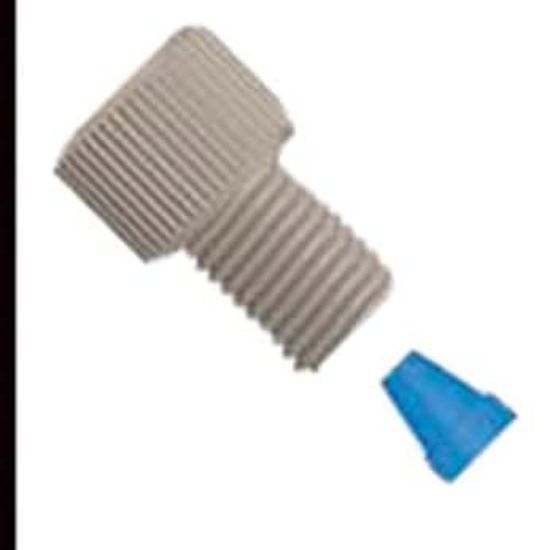

The IDEX Short PEEK Fitting, 1/16 in, 1/4-28 Flat-Bottom, 10/Pack (XP-235X) is a short-head flangeless nut and ferrule assembly for connecting 1/16 in OD tubing to compatible 1/4-28 flat-bottom receiving ports. The natural PEEK fitting is reusable, finger-tightened and rated for pressures up to 2000 psi (138 bar).
Key Features
- Flangeless connection design, eliminating the need to form a flange on the tubing before installation
- Short-head configuration, providing a compact fitting profile for compatible fluidic systems
- Fits 1/16 in OD tubing, equivalent to a tubing outside diameter of 1.588 mm
- 1/4-28 flat-bottom connection, designed for appropriately threaded receiving ports
- Natural PEEK nut construction, providing chemical resistance for laboratory fluid-handling applications
- Blue ETFE ferrule included, providing the compression component required to secure the tubing
- Finger-tightened installation, allowing the nut and ferrule assembly to be fitted without flanging equipment
- Removable and reusable components, supporting straightforward tubing changes and fitting maintenance
- Pressure rating up to 2000 psi, equivalent to 138 bar when correctly installed
- Pack of 10 fitting assemblies, suitable for multiple installations and replacement requirements
Benefits
- Reduces tubing preparation time by removing the need to create a flange before making the connection.
- Allows tubing and fitting components to be changed within seconds using a simple finger-tightened assembly.
- Supports secure fluidic connections in chromatography and general laboratory flow systems.
- Helps reduce replacement costs through removable and reusable fitting components.
- Provides multiple complete fitting assemblies for system installation, servicing and inventory requirements.
Why Choose the IDEX Short PEEK Fitting, 1/16 in, 1/4-28 Flat-Bottom, 10/Pack (XP-235X)?
This compact flangeless fitting combines a natural PEEK nut, blue ETFE ferrule and 1/4-28 flat-bottom connection for convenient installation with 1/16 in OD tubing. Buy from John Morris Group for verified IDEX fluidic components suitable for compatible chromatography and laboratory flow systems.
