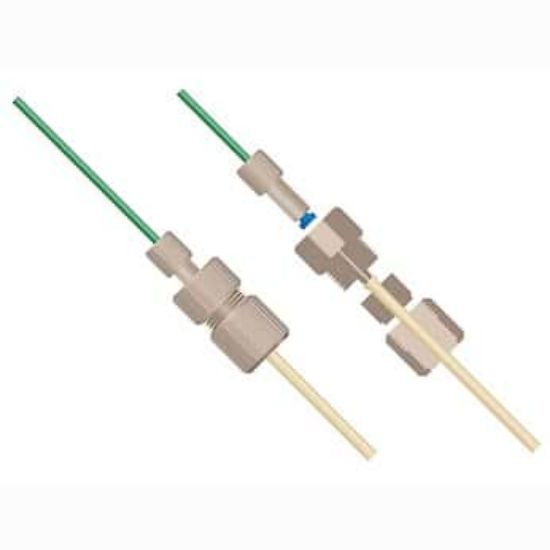

The IDEX Peristaltic Tubing Adapter, PEEK/ETFE, 0.030in Bore (P-757 / 02014-39) is designed to create a secure connection between 1/16 in OD rigid or semi-rigid tubing and soft-wall peristaltic tubing. It combines PEEK and ETFE components with a 0.030 in bore and accommodates soft-wall tubing from 0.048 to 0.110 in ID with an outer diameter up to 0.18 in.
Key Features
- PEEK and ETFE construction, combining natural PEEK and blue ETFE components for the adapter assembly
- Connects rigid and soft-wall tubing, joining 1/16 in OD rigid or semi-rigid tubing to compatible peristaltic tubing
- Wide soft-wall tubing range, accommodating tubing from 0.048 to 0.110 in internal diameter and up to 0.18 in outer diameter
- 0.030 in fluid bore, equivalent to approximately 0.75 mm through the adapter
- Secure retainer-sleeve design, holding soft-wall tubing firmly over the specially designed adapter nose
- 1/4-28 flat-bottom connection system, allowing connection to compatible flangeless fluidic fittings
- High-pressure fitting capability, rated by the exact Cole-Parmer configuration to 6,000 psi (414 bar)
- Complete adapter assembly, supplied with a PEEK/ETFE flangeless fitting, flangeless ferrule and three retainer-sleeve sizes
Note: This product is listed as obsolete by IDEX Health & Science, with no direct substitute currently specified. Contact John Morris Group to confirm availability or discuss suitable alternatives.
Benefits
- Creates a secure transition between flexible peristaltic tubing and more permanent rigid fluid lines.
- Helps prevent soft tubing from pulling free by mechanically retaining it over the ribbed adapter nose.
- Accommodates several soft-wall tubing sizes through the supplied retainer sleeves.
- Reduces the amount of soft-wall tubing required in the fluid pathway by allowing an early transition to 1/16 in rigid tubing.
- Simplifies installation by supplying the main fitting, ferrule and retainer components required for the connection.
Why Choose the IDEX Peristaltic Tubing Adapter, PEEK/ETFE, 0.030in Bore (P-757 / 02014-39)?
The IDEX P-757 provides a purpose-designed connection between soft-wall peristaltic tubing and 1/16 in OD rigid tubing using a secure nose-and-retainer system. John Morris Group can assist with availability of item 02014-39 and suitable alternatives where this obsolete IDEX adapter is no longer available.
