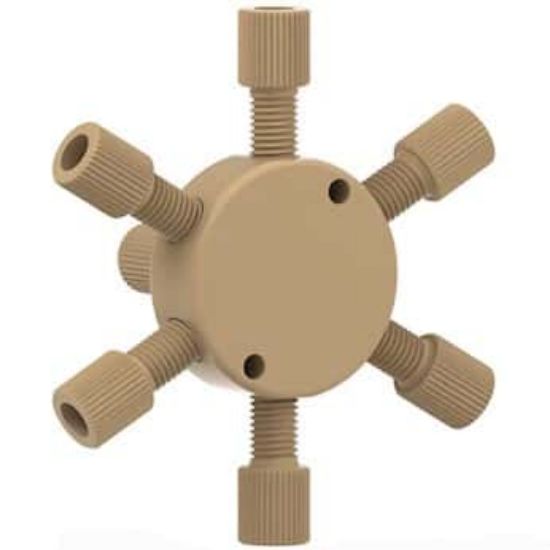

The IDEX PEEK Manifold, 7 Port, 1/8", 1/4-28 Flat-Bottom (P-151, Cole-Parmer item 02023-04) is a low-pressure fluidic manifold designed to combine several fluid streams into one or divide one stream across multiple outlets. Manufactured from biocompatible PEEK, it provides seven ports for 1/8" OD tubing, 0.062" through holes and a recommended pressure rating of 500 psi (34 bar).
Key Features
- Seven-port manifold configuration, arranged with one inlet port and six outlet ports for splitting or combining fluid streams
- Biocompatible PEEK construction, providing excellent chemical resistance for compatible fluidic applications
- Natural PEEK manifold body, as specified by IDEX for the current P-151 configuration
- Designed for 1/8" OD tubing, matching the specified connection size for the manifold assembly
- 1/4-28 flat-bottom ports, providing the specified connection interface across the manifold
- 0.062" through-hole diameter, providing the internal flow passage specified for the 1/8" tubing configuration
- Recommended for pressures up to 500 psi, equivalent to 34 bar
- Supplied with seven P-331 nuts, providing the matching Super Flangeless nut components for the manifold
- Supplied with seven P-359 ferrules, as specified in IDEX's current P-151 manifold family configuration
- Designed for multiport fluid handling, including mixing, stream splitting, gas sparging and multi-well sample injection workflows
Note: This product has been listed as obsolete by the manufacturer with no direct substitute. Contact John Morris Group to confirm current availability or discuss suitable alternatives.
Benefits
- Allows one fluid stream to be divided into six outlet paths or multiple streams to be combined through a single compact manifold.
- Supports flexible low-pressure fluid routing for mixing, sample injection and multi-direction flow applications.
- Provides the matching Super Flangeless nuts and ferrules required for the specified 1/8" tubing connections.
- Uses biocompatible PEEK construction for applications requiring a chemically resistant polymer fluid path.
- Supports low-pressure analytical fluid systems with a verified operating capability of up to 500 psi.
Why Choose the IDEX PEEK Manifold, 7 Port, 1/8", 1/4-28 Flat-Bottom (P-151)?
The IDEX P-151 provides a compact seven-port PEEK manifold for splitting or combining fluid streams through 1/8" OD tubing connections. Its 1/4-28 flat-bottom ports, 0.062" flow passages and supplied Super Flangeless fittings make it a purpose-designed component for compatible low-pressure analytical fluid systems. As IDEX currently lists P-151 as obsolete with no direct substitute, John Morris Group can assist with confirming remaining availability or identifying a suitable alternative.
