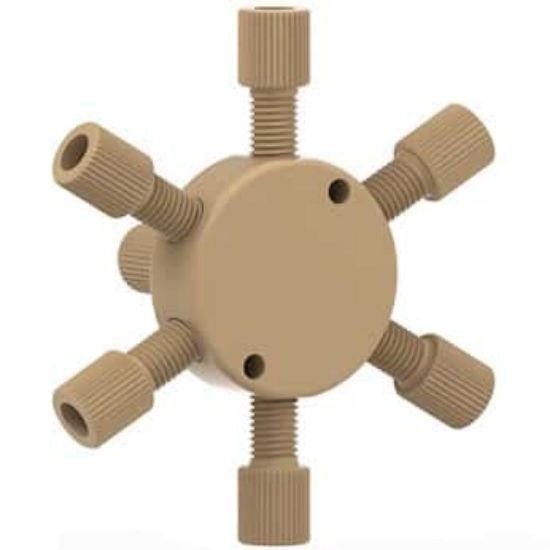

The IDEX PEEK Manifold Assembly, 6 Port, 1/16 in, 1/4-28 (P-152; Cole-Parmer item 02023-06) is a low-pressure fluidic manifold designed to split one fluid stream into multiple outlets or combine several streams into one. Manufactured from biocompatible PEEK, it provides six 1/4-28 flat-bottom ports for 1/16 in OD tubing, a 0.040 in through-hole and a maximum pressure rating of 1000 psi (69 bar).
Key Features
- Six-port manifold configuration, providing one inlet and multiple connection points for splitting or combining fluid streams
- Biocompatible PEEK construction, providing excellent chemical resistance for compatible analytical fluid paths
- Designed for 1/16 in OD tubing, equivalent to approximately 1.6 mm outside diameter
- 1/4-28 flat-bottom ports, providing the specified connection format across the manifold
- Recommended for pressures up to 1000 psi, equivalent to 69 bar
- 0.040 in through-hole diameter, providing the verified internal flow passage for this configuration
- Low 26.8 µL swept volume, helping minimise internal fluid volume within the manifold
- Supplied with six P-255 nuts and six P-250 ferrules, providing the compatible Super Flangeless connection components with the assembly
Note: This product has been listed as discontinued by the manufacturer, with no direct substitute currently identified. Contact John Morris Group to confirm current availability or to discuss suitable alternatives.
Benefits
- Allows one fluid stream to be distributed to several destinations or multiple streams to be combined into one.
- Supports multiport mixing, multi-well sample injection and other fluid-routing applications requiring several connection points.
- Helps minimise unnecessary internal volume through its 26.8 µL swept-volume design.
- Simplifies installation by including the compatible Super Flangeless nuts and ferrules required for the six ports.
- Provides a chemically resistant PEEK fluid path for compatible laboratory and analytical systems.
Why Choose the IDEX PEEK Manifold Assembly, 6 Port, 1/16 in, 1/4-28 (P-152)?
The IDEX P-152 provides six 1/4-28 flat-bottom ports, compatibility with 1/16 in OD tubing and a 1000 psi pressure rating in a compact PEEK manifold for splitting or combining fluid streams. Its low swept volume and supplied Super Flangeless fittings make it practical for multiport analytical fluidic assemblies. As IDEX currently lists P-152 as obsolete, contact John Morris Group to confirm availability or discuss an appropriate alternative.
