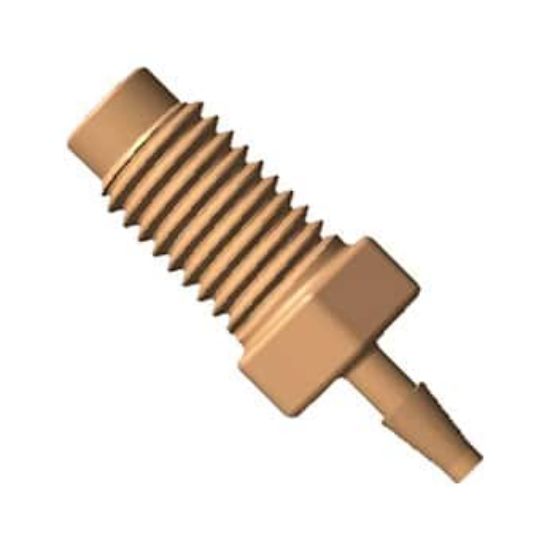

The IDEX PEEK Adapter Fitting, 1/16in Barb x 1/4-28 Male (P-668 / 02014-19) is a thread-to-barb adapter designed to connect soft-wall or peristaltic tubing to a compatible threaded fluidic port. Manufactured from natural PEEK, it combines a 1/16 in hose barb, 1/4-28 male flat-bottom thread and 0.040 in (1.0 mm) through bore.
Key Features
- Natural PEEK construction, providing an inert, chemically resistant material for compatible fluidic applications
- 1/16 in hose barb connection, designed for soft-wall tubing with a nominal 1/16 in internal diameter
- 1/4-28 male flat-bottom thread, allowing the adapter to connect directly to a compatible receiving port
- 0.040 in through bore, equivalent to approximately 1.0 mm
- Designed for soft-wall tubing, including peristaltic-style tubing used in low-pressure fluid handling
- Simple barb-to-thread installation, allowing tubing to be slipped over the barb before the adapter is threaded into the receiving port
Note: This product is listed as obsolete by IDEX Health & Science, with no direct substitute currently specified. Contact John Morris Group to confirm availability or discuss suitable alternatives.
Benefits
- Provides a straightforward way to transition from flexible tubing to a threaded fluidic connection.
- Supports reliable low-pressure connections without requiring a more complex tubing fitting assembly.
- Offers PEEK construction for applications where chemical resistance and an inert fluid-contact material are important.
- Simplifies installation by combining the hose barb and threaded adapter in a single component.
Why Choose the IDEX PEEK Adapter Fitting, 1/16in Barb x 1/4-28 Male (P-668 / 02014-19)?
The IDEX P-668 provides a compact PEEK solution for connecting 1/16 in ID soft-wall tubing to a 1/4-28 flat-bottom threaded port. John Morris Group can assist with availability of item 02014-19 and suitable alternatives where this obsolete IDEX adapter is no longer available.
