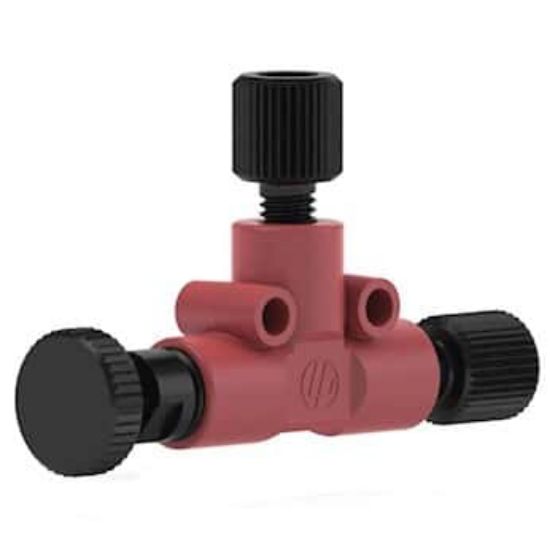

The IDEX Adjustable Back Pressure Regulator, 2000-5000 psi (P-880, Cole-Parmer 02014-59) is a biocompatible high-pressure regulator designed to provide adjustable system back pressure independently of flow. It offers an adjustable range of 2,000 to 5,000 psi, a low 9 µL swept volume and connections for 1/16 in OD tubing.
Key Features
- Adjustable 2,000 to 5,000 psi pressure range, equivalent to 138 to 345 bar
- Pressure adjustment independent of flow, allowing system back pressure to be set across the specified operating range
- Low 9 µL swept volume, limiting additional internal fluid-path volume
- 10-32 coned ports, providing the specified connection configuration for this regulator
- Designed for 1/16 in OD tubing, supporting compatible chromatography and analytical fluidic connections
- PEEK, perfluoroelastomer and PTFE construction, providing chemically resistant materials within the regulator assembly
- Biocompatible high-pressure design, developed for compatible analytical fluid-handling systems
- Excellent chemical resistance, with IDEX describing the regulator materials as inert to most solvents
- Supplied with two F-120BLK fittings, providing the specified fittings with the regulator assembly
Note: This product has been listed as discontinued by the manufacturer. Contact John Morris Group to confirm current availability or to discuss suitable alternatives.
Benefits
- Allows system back pressure to be fine-tuned by turning the adjustment thumbscrew while monitoring pressure.
- Supports high-pressure chromatography and analytical fluidic applications requiring adjustable back pressure.
- Minimises added fluid volume through the compact 9 µL swept-volume design.
- Supports chemically demanding workflows through the use of resistant polymer materials.
- Provides the required fittings with the assembly for easier integration into compatible 1/16 in tubing systems.
Why Choose the IDEX Adjustable Back Pressure Regulator, 2000-5000 psi (P-880)?
The IDEX Adjustable Back Pressure Regulator, 2000-5000 psi (P-880, Cole-Parmer 02014-59) combines high-pressure adjustability, low swept volume and chemically resistant construction in a compact fluidic regulator. John Morris Group can assist with availability and suitable alternatives for this discontinued IDEX back pressure regulator.
