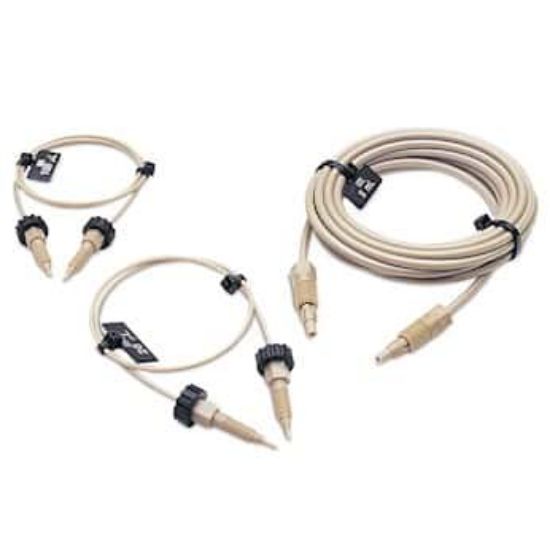

The IDEX 200 µL PEEK Sample Loop for 9725/9725i Valves (9055-025; Cole-Parmer item 02016-80) is a flexible, metal-free sample loop designed for compatible chromatography injection valves. It provides a nominal 200 µL sample volume with 1/16 in OD x 0.51 mm (0.020 in) ID PEEK tubing and is supplied with two unswaged fittings.
Key Features
- Flexible PEEK construction, providing a metal-free alternative to stainless steel sample loops
- Biocompatible fluid path, supporting applications where metallic wetted materials are undesirable
- Broad solvent resistance, with PEEK described by IDEX as inert to almost all organic solvents
- 200 µL nominal sample volume, providing the verified capacity for this loop configuration
- Designed for 9725 and 9725i valves, matching the specified chromatography injection valve configuration
- Clean, straight-cut loop ends, supporting straightforward installation into compatible valve ports
- Two unswaged fittings supplied, allowing the fittings to reposition along the PEEK tubing during installation
Note: This product has been listed as discontinued by the manufacturer. Contact John Morris Group to confirm current availability or to discuss suitable alternatives.
Benefits
- Provides a metal-free sample path for workflows where biocompatibility and chemical resistance are important.
- Simplifies valve installation through flexible tubing and clean, straight-cut loop ends.
- Supports repeatable sample loading with a defined nominal 200 µL loop volume.
- Allows the supplied fittings to reposition during reinsertion, helping achieve correct loop installation.
Why Choose the IDEX 200 µL PEEK Sample Loop for 9725/9725i Valves (9055-025)?
The IDEX 9055-025 combines a nominal 200 µL capacity with flexible, biocompatible PEEK construction for compatible 9725 and 9725i injection valves. Its clean-cut tubing ends and unswaged fittings support straightforward installation while providing a metal-free alternative to stainless steel loops. As IDEX currently lists this part as obsolete, contact John Morris Group to confirm availability or discuss a suitable alternative.
