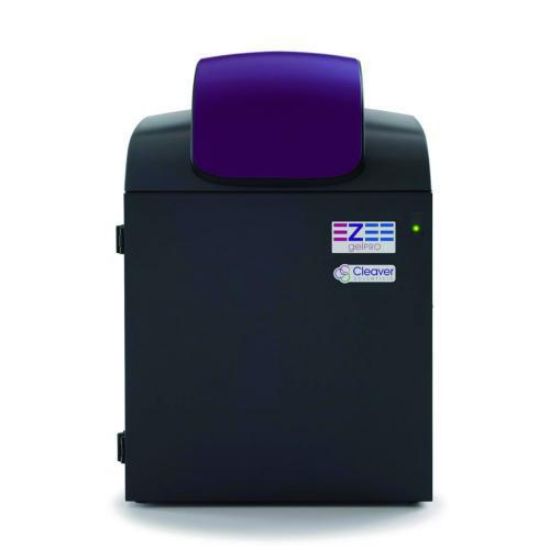

gelPRO Gel Documentation System with large 302nm 230V 50Hz (Europe) UVT 57 x 84 x 45 cm
An entry level system for routine fluorescence and gel documentation. Suitable for DNA gels, protein gels, colony counting, colorimetric blots and films. Spacious darkroom for viewing gels up to 25 x 30 cm. Internal lighting comes from a UV transilluminator or a white or blue light LED module. This system can be upgraded to a chemiluminescence imager.
-High resolution 5 MP camera for good spatial resolution
-Effective resolution up to 15.1 MP
-Motor driven zoom lens and filter wheel
-Integral white LED lighting for sample positioning, visible light applications and colorimetric markers
-Pre-defined 1-click protocols for rapid imaging
-Genepix automatic control software
-Unlimited user saveable protocols
-Can be used in a 21 cfr part 11 compliant environment
Scope of supply:
Darkroom, camera, UV transilluminator, UV emission filter, license free acquisition and analysis software
Specifications
Resolution: 5 megapixels
Effective resolution: 15.1 megapixels
Lens: Zoom, f1.2 with lens feedback
Sensor bit-depth: 12/16 bit
Greyscales: 65536
Dynamic range: 4.8
Transilluminator wavelength: 302 nm
Transilluminator size: 250 x 300 mm
Dimensions (W x D x H): 570 x 450 x 840 mm
Weight: 37 kg
Power supply: 230 V/50 Hz
