The GUNT Elements for Energy Dissipation HM 162.35 are designed to dissipate high energy flows downstream of control structures in the HM 162 flume. They are used in combination with the Ogee-Crested Weir HM 162.32 to study hydraulic jumps and flow energy reduction.
Product Features

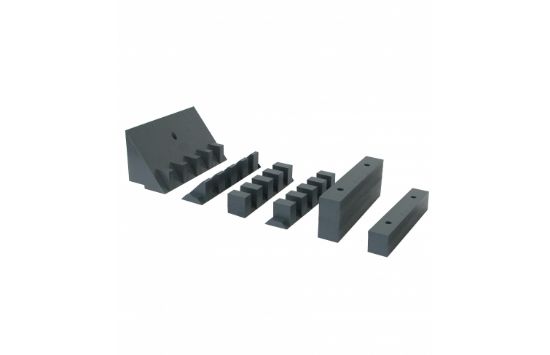

- Set of elements including chute blocks, baffle blocks, and end sills
- End sills create stilling basins and stabilize hydraulic jumps
- Chute block can replace a weir outlet of HM 162.32
- Baffle blocks and end sills can be used individually or in combination
- All elements are mounted on a base plate for easy setup
Benefits
- Enables controlled dissipation of supercritical flow energy
- Supports experiments on hydraulic jumps and energy dissipation
- Flexible configuration allows study of individual and combined elements
- Durable construction for repeated laboratory experiments
Why Choose GUNT Elements for Energy Dissipation?
The GUNT Elements for Energy Dissipation HM 162.35 provide a reliable and flexible solution to reduce flow energy downstream of ogee-crested weirs and study hydraulic jumps in open channel experiments.
