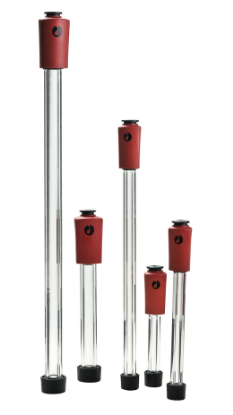

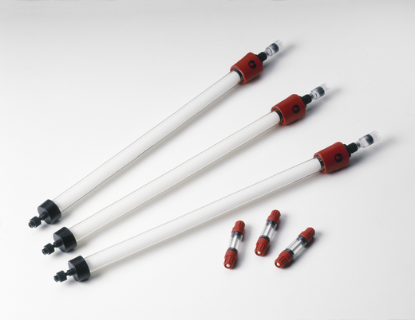

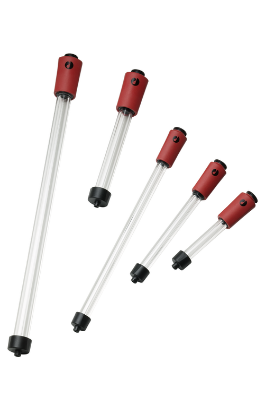

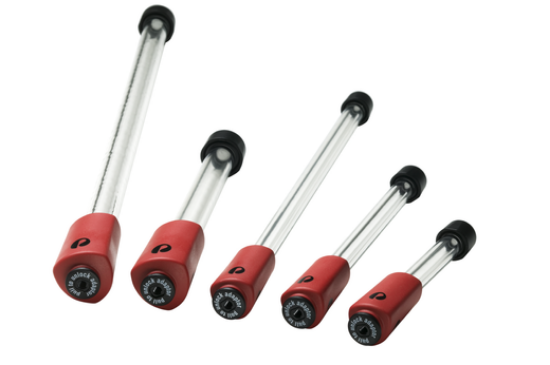

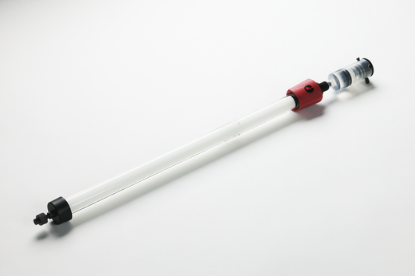

The Cytiva Tricorn 5/20 Empty Chromatography Column (28406408) is a 5 mm inner diameter × 20 mm empty high-performance column for packing chromatography resins. It supports operating pressures up to 10 MPa and temperatures from 4 to 40°C.
Key Features
- Compact 5 × 20 mm column format, with a 5 mm inner diameter and 20 mm column length
- High operating pressure capability, rated up to 10 MPa, 100 bar or 1,450 psi for Tricorn 5 columns
- Operating temperature range from 4 to 40°C, supporting common laboratory chromatography conditions
- Adjustable bed volume with one adapter, providing 0.10 to 0.57 mL across a 5 to 29 mm bed height
- Flexible configuration with two adapters, providing 0.00 to 0.52 mL across a 0 to 26 mm bed height
- Wetted materials selected for chromatography use, including borosilicate glass, PEEK, PP, EPDM and PFR

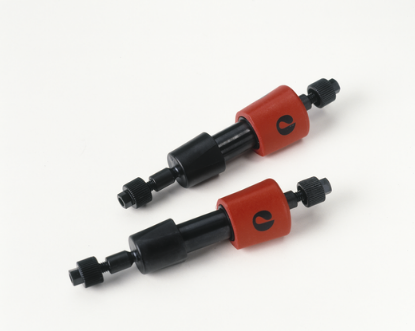

- Supplied as a complete empty column assembly, including the column tube, adapter unit, end cap, filter kit, two stop plugs and two fingertight connectors
- Optional solvent-resistant sealing available, with PFR O-rings available as an alternative to standard EPDM O-rings
Benefits
- Configure small chromatography beds to suit low-volume purification and method-development requirements.
- Adjust bed height and volume using one or two adapters to accommodate different packed-bed configurations.
- Operate at pressures up to 10 MPa for demanding high-performance chromatography workflows.
- Work across a defined 4 to 40°C operating range for controlled laboratory purification procedures.
- Reduce setup requirements with essential column components and connectors supplied with the column.
Why Choose the Cytiva Tricorn 5/20 Empty Chromatography Column (28406408)?
The Cytiva Tricorn 5/20 combines a compact 5 mm ID format with adjustable bed dimensions and a maximum operating pressure of 10 MPa for laboratory chromatography workflows. Buy from John Morris Group for access to genuine Cytiva chromatography products and support for your laboratory purification requirements.
