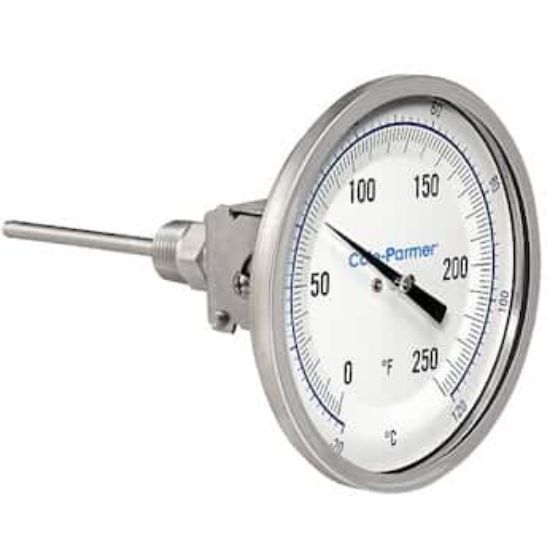

The Cole-Parmer Silicone-Filled Bimetal Thermometer, 5 in Dial, Adjustable Angle, 12 in Stem, 0-250°F (90590-94) is an industrial temperature instrument with a -20 to 120°C range, ±1% accuracy and silicone-filled dial for high-vibration applications. Its 5 in dial, 12 in stainless steel stem and adjustable-angle configuration support clear temperature monitoring across demanding installations.
Key Features
- Silicone-filled design improves performance in high-vibration environments, reducing pointer flutter while supporting responsive temperature indication
- Wide 0 to 250°F (-20 to 120°C) measuring range, providing dual-scale temperature monitoring
- ±1% accuracy, supporting dependable industrial temperature measurement
- Fine 2°F and 2°C scale divisions, allowing temperature changes to be read clearly from the dial
- Large 5 in anti-parallax dial, helping minimise viewing-angle errors when reading both temperature scales
- 12 in long stainless steel stem, with a 0.25 in diameter for process insertion
- 304 stainless steel dial case and stem, providing an all-welded construction for demanding environments
- NEMA 4X/IP66 environmental protection, helping protect the thermometer in exposed industrial conditions
- Hermetically sealed case, helping prevent moisture entry, internal corrosion and coil freeze-up
- External adjustment with limited span adjustment capability, allowing calibration-related adjustments without dismantling the thermometer
- 1/2 in NPT(M) process connection, providing the specified threaded connection for installation
- 16.25 in (412.75 mm) overall length, combining the adjustable-angle head with the 12 in stem
- Designed to ASME B40.3, with the applicable standard identified by the manufacturer
Benefits
- Improves dial readability in vibrating equipment and process environments by reducing pointer movement
- Helps operators take clearer readings from different viewing positions through the large anti-parallax dial
- Supports installation flexibility where dial orientation needs to be adjusted for easier viewing
- Reduces exposure-related maintenance concerns through the sealed stainless steel construction and NEMA 4X/IP66 protection
- Allows convenient external adjustment when limited span correction is required
Why Choose the Cole-Parmer Silicone-Filled Bimetal Thermometer, 5 in Dial, Adjustable Angle, 12 in Stem, 0-250°F (90590-94)?
The Cole-Parmer 90590-94 combines a silicone-filled 5 in dial, adjustable-angle configuration, 12 in 304 stainless steel stem and ±1% accuracy for industrial temperature monitoring in high-vibration environments. Its sealed NEMA 4X/IP66 construction, anti-parallax dial and external adjustment make it a practical choice where durability and clear readings are important. Buy with support from John Morris Group in Australia.
