- 1 year warranty
- ±0.25% Test Gauge Accuracy
- 316 Stainless Steel Wetted Parts
- Zero and Span Potentiometers
- Fast 33 Times per Second Display Update

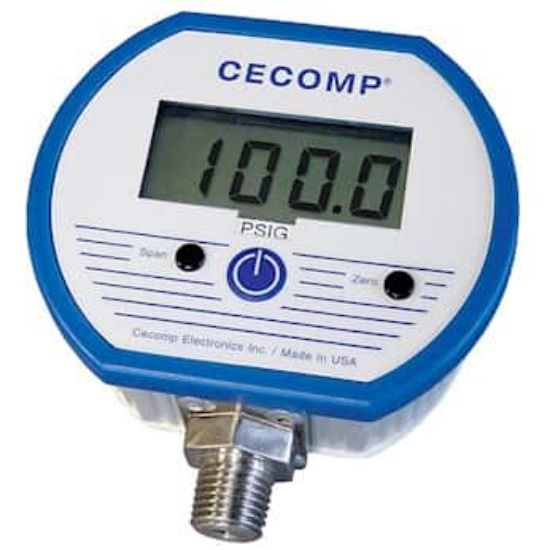

Series B - Battery-Powered Gauges
- Battery life up to 2500 hours in 3-1/2 digit ranges; 500 hours in 4 digit ranges
- Low battery indicator: 5-minute auto shutoff to conserve battery life
- Powered by (2) AA batteries (included): easy-to-find
- NEMA 4X Versions Available
- Compound Range Version
- Series L - Loop-Powered Gauges
- 2-wire design powered by 4-20 ma current loop
- Operated on 8 to 32 VDC
- Reverse polarity protected
- TEST button to check loop operation
- 3-foot, 2-wire electrical connection
- NEMA 4X Versions Available
Series D - AC/DC Powered Gauges
Series A -AC/DC-Powered Gauges with Alarms
- Power by 8 to 24 VDC, 50/60 Hz or 9 to 32 VDC, 1W max
- Visual bi-color alarm LED on front panel
- Top-mounted potentiometers for high and low set points
- Use TEST button to cycle alarms
- Two SPDT relay contacts are rated for 1 A at 24 VD and 0.5 A at 115 VAC, noninductive
- Use TEST button to cycle alarms
- 3-foot, 8-wire electrical and alarm connection
Includes: 2 AA batteries.
