The GUNT Assembly & Maintenance Exercise for Refrigeration allows trainees to work on a complex project involving planning, implementation, and checking of assembly, commissioning, and maintenance processes. The exercise focuses on refrigeration installation including the installation of LP and HP pressure switches, expansion valve, and pipework of the refrigeration circuit. Pipe joints are bolted, not soldered. Electrotechnical installation involves wiring and connecting all units and switching elements.
Product Features
- Training in assembly, commissioning, and maintenance of refrigeration systems
- Includes installation of LP and HP pressure switches, expansion valve, and refrigeration circuit pipework
- Pipe joints are bolted for easy assembly and disassembly
- Electrotechnical installation covers wiring and connection of all units and switching elements
- Requires tool set ET 150.02 for assembly and filling/evacuation equipment ET 150.01 for system commissioning

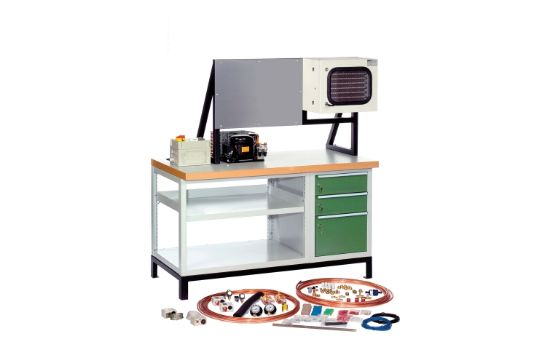

- Fully assembled system represents a temperature-controlled refrigeration system with refrigeration chamber and electrical thermostat
- Designed for repeated assembly and disassembly
- Components and tools stored in drawers on a workbench
- Assembly panel and refrigeration chamber mounted on a frame fixed to the working surface
- Frame, condensing unit, and switch cabinet permanently bolted to the workbench
- Refrigeration and electrical components attached to an aluminium assembly panel
Benefits
- Provides hands-on experience in complex refrigeration system assembly and maintenance
- Develops skills in both mechanical and electrotechnical installation
- Supports learning of system commissioning using specialized tools
- Encourages systematic practice through repeated assembly and disassembly
Why Choose the GUNT Assembly & Maintenance Exercise?
This training kit offers practical experience in refrigeration technology, combining mechanical and electrical assembly with commissioning and maintenance, ideal for technical education and vocational training.
