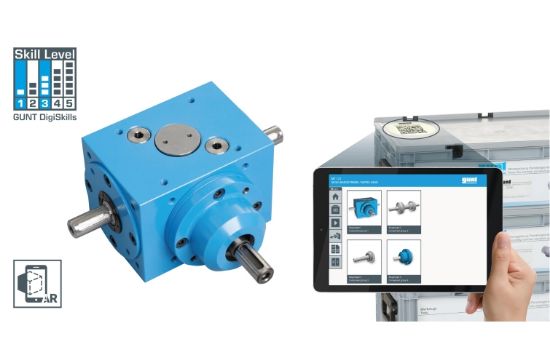

The GUNT Assembly Exercise Mitre Gear kit features a single-stage mitre gear unit with spiral bevel gear wheels. This gear type is used to change transmission direction and allows branching to connect two consumers. Spiral bevel gears offer increased contact area compared to straight bevel gears, resulting in smoother operation and higher transmittable torque.
Product Features
- Single-stage mitre gear unit with spiral bevel gear wheels for smooth running and efficient torque transmission
- Used to change transmission direction and for branching, enabling connection of two consumers
- Designed for assembly, maintenance, and repair training in technical colleges and company training centres
- Assembly and disassembly can be completed within standard lesson times
- Only basic tools are required for assembly, all supplied with the kit
- Fit seatings of the gear unit allow complete assembly by hand without additional tools
- Comprehensive multimedia instructional materials provide extensive technical information as a base for lesson design
- Includes a complete set of drawings as files with parts lists, single-part drawings, exploded views, assembly drawings, and 3D drawings
- Drawings are to standard and dimensioned according to production requirements
- Instructional materials available in DXF, STEP, and PDF formats
- Assembly videos and an augmented reality interface (Vuforia View) for mobile devices support visualization of processes and gear functions
- Instructional files are freely available online in the GUNT Media Center
- The disassembled mitre gear is delivered in a storage system with foam inlay for safe storage and transport
- Compatible with transport roller MT 120.02 or trolley MT 120.01 for convenient transport
Benefits
- Hands-on training in assembly and maintenance of mitre gear units
- Supports understanding of spiral bevel gear design and function
- Rich multimedia and augmented reality resources enhance learning and engagement
- Compact and organized kit suitable for classroom and workshop use
Why Choose the GUNT Mitre Gear Assembly Kit?
This kit offers comprehensive practical experience for assembly, maintenance, and repair of mitre gear units, backed by detailed instructional materials and innovative augmented reality tools. It is ideal for technical education and vocational training focused on mechanical gear systems.
