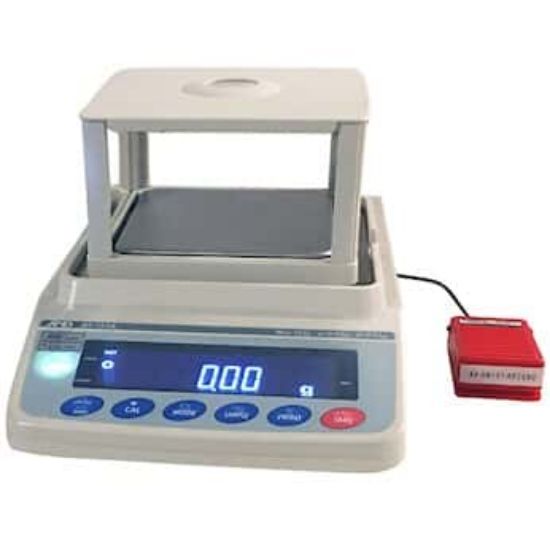

The A&D Weighing Apollo Dispensing Balance, 1600 g x 0.001 g (GX-1603A-GS; JMG/Cole-Parmer reference 11114-51) is a gravimetric dispensing system designed to provide direct weighing feedback for accurate dosing and filling with compatible digital pump drives. The system combines 0.001 g readability, internal calibration and pump-control hardware for automated dispensing workflows.
Key Features
- 1600 g dispensing capacity, combined with 0.001 g readability for precise gravimetric filling and dosing
- High weighing repeatability, specified at 0.001 g with ±0.003 g linearity
- Fast weighing response, with approximately 1 second stabilisation and approximately 0.8 second response for a 5 g load
- Internal calibration, supporting one-touch adjustment and automatic self-calibration based on temperature and time intervals
- Smart-SHS weighing technology, designed for rapid stabilisation and dependable precision weighing
- Electronically Controlled Load diagnostics, enabling an internal repeatability test without requiring an external calibration weight
- Flow Rate Display functionality, supporting calculation and output of mass or volumetric flow rate for filling and dosing applications
- Impact Shock Detection, providing visual and audible indication of impacts with date, time and shock-level logging
- 128 x 128 mm weighing pan, providing a practical platform for dispensing vessels and containers
- RS-232C and USB connectivity, supporting balance communication, data transfer and compatible computer connections
- Password-controlled operation, supporting up to 11 users and one administrator
- Multiple weighing applications, including percentage weighing, animal weighing, counting, density determination, statistical calculation, comparator, underhook and gross/net/tare modes
- Complete dispensing connection hardware, supplied with the balance, foot switch, pump control interface and 25-pin cable for connection to a compatible pump drive
- 25-pin remote I/O compatibility, allowing control of compatible digital drives equipped with a DB-25 remote connection
Benefits
- Improves dosing and filling accuracy by allowing pump operation to respond directly to measured weight.
- Supports repeatable automated dispensing without requiring a separate external weighing controller.
- Reduces routine calibration effort through internal calibration and automatic self-calibration functions.
- Helps detect weighing problems before they affect results through built-in repeatability diagnostics and impact monitoring.
- Simplifies dispensing-system integration by including the foot switch, pump interface and connection cable required for compatible drive control.
- Supports data collection and statistical analysis through connectivity and complementary WinCT-Dispense software.
Why Choose the A&D Weighing Apollo Dispensing Balance, 1600 g x 0.001 g (GX-1603A-GS)?
The A&D Apollo GX-1603A-GS combines precision weighing with direct pump-control capability to create an integrated platform for gravimetric dispensing and filling. John Morris Group can assist with balance selection and compatibility requirements when integrating the system with suitable digital pump drives.
