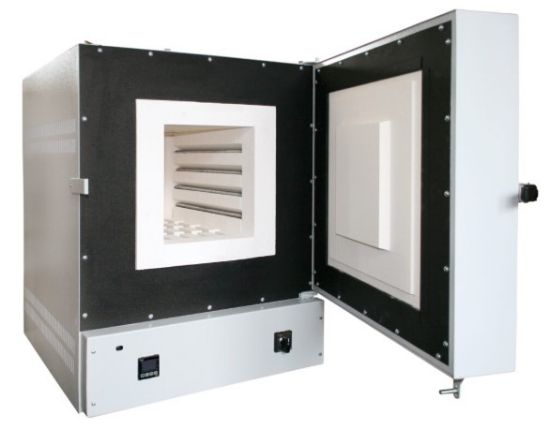

The high-accuracy electric fiber-insulated chamber furnace SNOL 40/1200 is a universal laboratory furnace designed for material testing and heat treatment processes such as hardening, annealing, normalizing, and firing ceramic and stoneware samples at temperatures up to 1200°C. To eliminate gases or smoke released during thermal processing, an exhaust system may be additionally installed. The furnace is an excellent fit for scientific laboratories, educational institutions, ceramic studios, medical applications, and industrial use.
- Chamber made from fiber thermal insulation plates;
- Heating elements are in grooves in three sides of the chamber (sides and bottom);
- Outside casing – metal sheet, powder painted grey;
- Door opens to the right side;
- Door safety interlock switch;
- Control panel is placed in the underpart of the furnace;
- Digital PID temperature controller E5CC (1 program, 2 steps);
- Ceramic bottom plates;
- Fast heating time due to low thermal mass construction;
- Low power consumption;
- Good stability and uniformity;
- 1 year warranty.
Specifications
- Volume: 40 L
- Maximum temperature:1200 °C
- Continuous operating temperature: T+10-1200 °C
- Power: 3,4 kW
- Rated supply voltage: 230 V
- Number of phases: 1
- Rated frequency: 50 Hz
- Chamber material: Fiber plates
- Maximum heating-up time (without charge): 150 min.
- Temperature stability: 2
- Temperature uniformity: 10°C
- Airflow: Natural
- Chamber width: 290 mm
- Chamber depth:420 mm
- Chamber height: 290 mm
- Overall width: 650 mm
- Overall depth: 875 mm
- Overall height: 835 mm
- Mass: 105kg
