ASTM D445, ASTM D5293, ASTM D4684

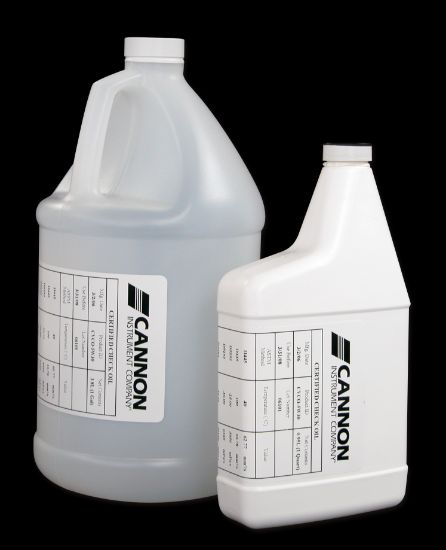

CANNON certified viscosity check oils verify SAE target viscosities for kinematic viscometers, cold-cranking simulators and mini-rotary viscometers per ASTM D445, D5293 and D4684 respectively. Each check oil contains a commercial engine oil with certified values at common blend target values for density in g/cm³ (g/mL) at 15 °C, kinematic viscosity in mm²/s (cSt) at 40 °C and 100 °C as well as cranking and pumping viscosities in mPa∙s (cP) at SAE J300 specification temperatures. CANNON certified viscosity check oils are available in 1 L (quart) and 3.8 L (gallon) sizes.
Standard Size: 4 L / 128 oz
Viscosity Standard: CVCO-5W30
Viscosity Values
Nominal viscosity values for CANNON viscosity check oils (CVCO)
| Viscosity Standard Catalog Number |
ASTM Test Method | Temp. (°C) | Typical Viscosity |
|---|---|---|---|
|
CVCO-5W30 9727-S00.032 (1 L) |
D445 | 40 | 58 cSt |
| D445 | 100 | 11 cSt | |
| D5293 | −25 | 3000 mPa·s | |
| D5293 | −30 | 5800 mPa·s | |
| D4684 | −35 | 20000 mPa·s | |
| D4052 | 15 | 0.85 g/mL | |
|
CVCO-10W30 9727-S01.032 (1 L) |
D445 | 40 | 70 cSt |
| D445 | 100 | 11 cSt | |
| D5293 | −20 | 2800 mPa·s | |
| D5293 | −25 | 5700 mPa·s | |
| D4684 | −30 | 21000 mPa·s | |
| D4052 | 15 | 0.88 g/mL | |
|
CVCO-15W40 9727-S02.032 (1 L) |
D445 | 40 | 100 cSt |
| D445 | 100 | 14 cSt | |
| D5293 | −15 | 3500 mPa·s | |
| D5293 | −20 | 6500 mPa·s | |
| D4684 | −25 | 25000 mPa·s | |
| D4052 | 15 | 0.88 g/mL | |
