Cole-Parmer Solenoid Pinch Valve, 2-Way, 1/32" to 3/32" Tube ID, 15 psiMax, NC, 12VDC_2331070

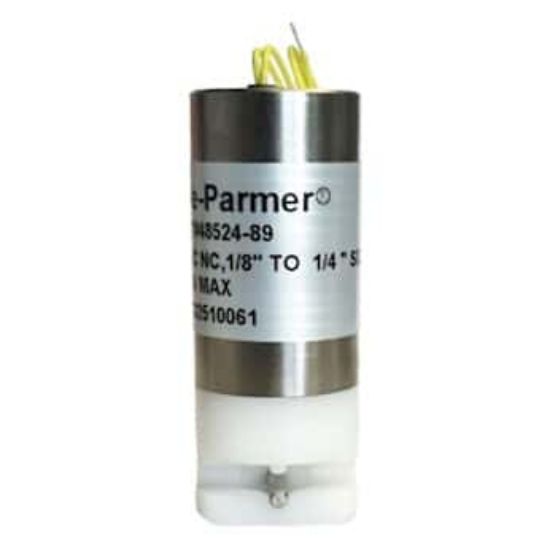

Representative image only

Cole-Parmer Solenoid Pinch Valve, 2-Way, 1/32" Tube ID and 3/32" Tube OD, 15 psiMax, NC, 12VDC

$468.60

The price is inclusive of GST
Precision solenoid pinch valves engineered for fast response and high-cycle operation
  • Fast-response solenoid design supports high-frequency switching and pulse applications
  • Factory-tuned closure ensures a tight, repeatable seal
  • Rated for continuous duty with minimal heat generation
  • Valve rated for up to 20 million cycles; tubing rated for up to 1 million cycles
  • Fluid contacts only the tubing, reducing the risk of contamination
  • Fully unobstructed flow path minimizes pressure drop during operation
  • Compact form factor ideal for space-constrained instruments and assemblies
  • For 1/32" inner diameter to 3/32" outer diameter tubes
  • Withstands up to 15 psi
  • Normally closed
  • 12 VDC operation
These 2-way solenoid-operated pinch valves are engineered for applications requiring fast response, repeatable closure, and long service life. Each valve is factory-tuned in a normally closed (NC) configuration to deliver a precise, reliable seal and maintain a fully unobstructed flow path when open.
Designed for continuous switching, these valves support high-frequency operation with minimal heat generation and consistent performance over millions of cycles, making them well suited for pulse dosing, sampling, analytical instrumentation, and integration into compact systems.
